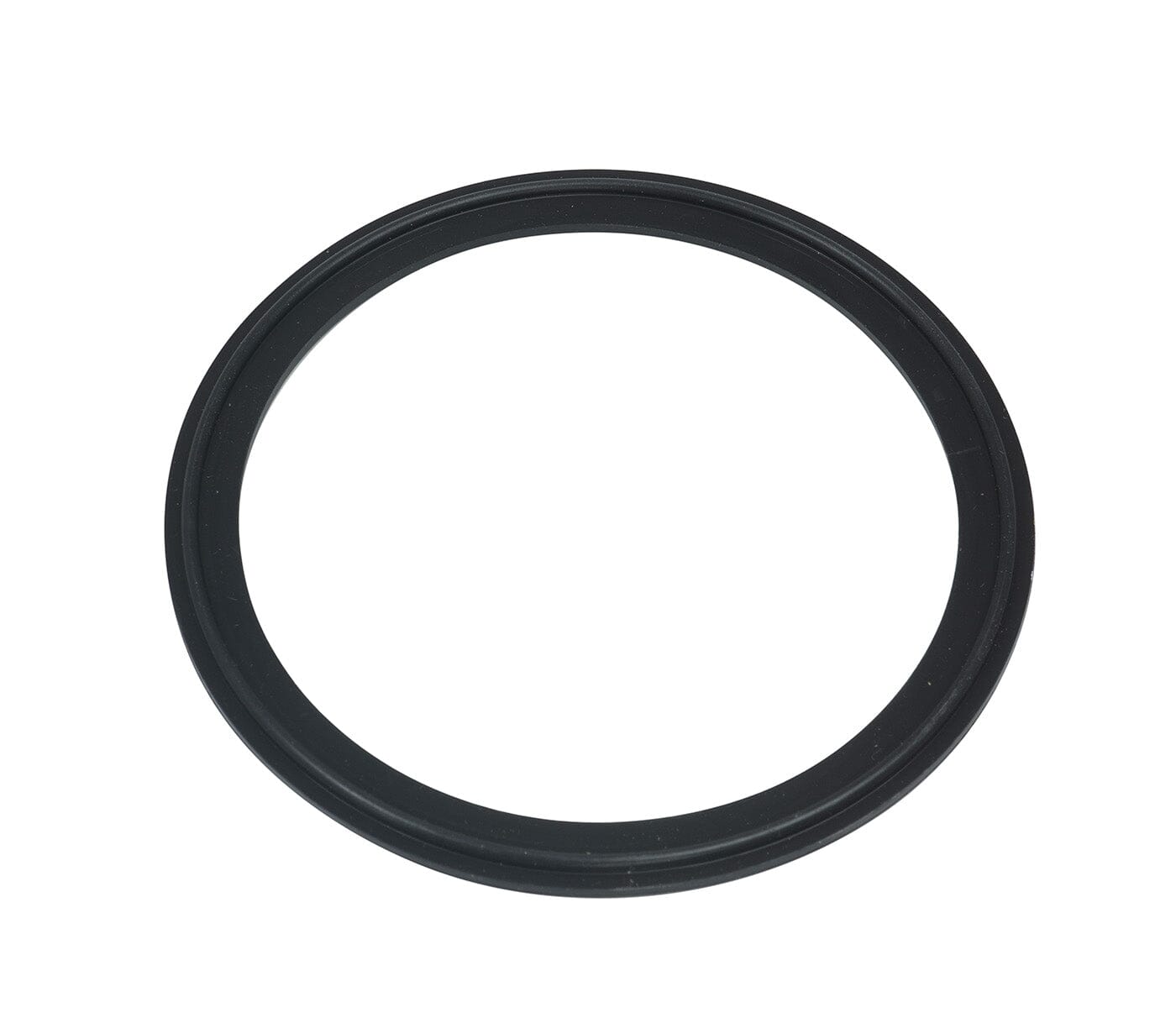

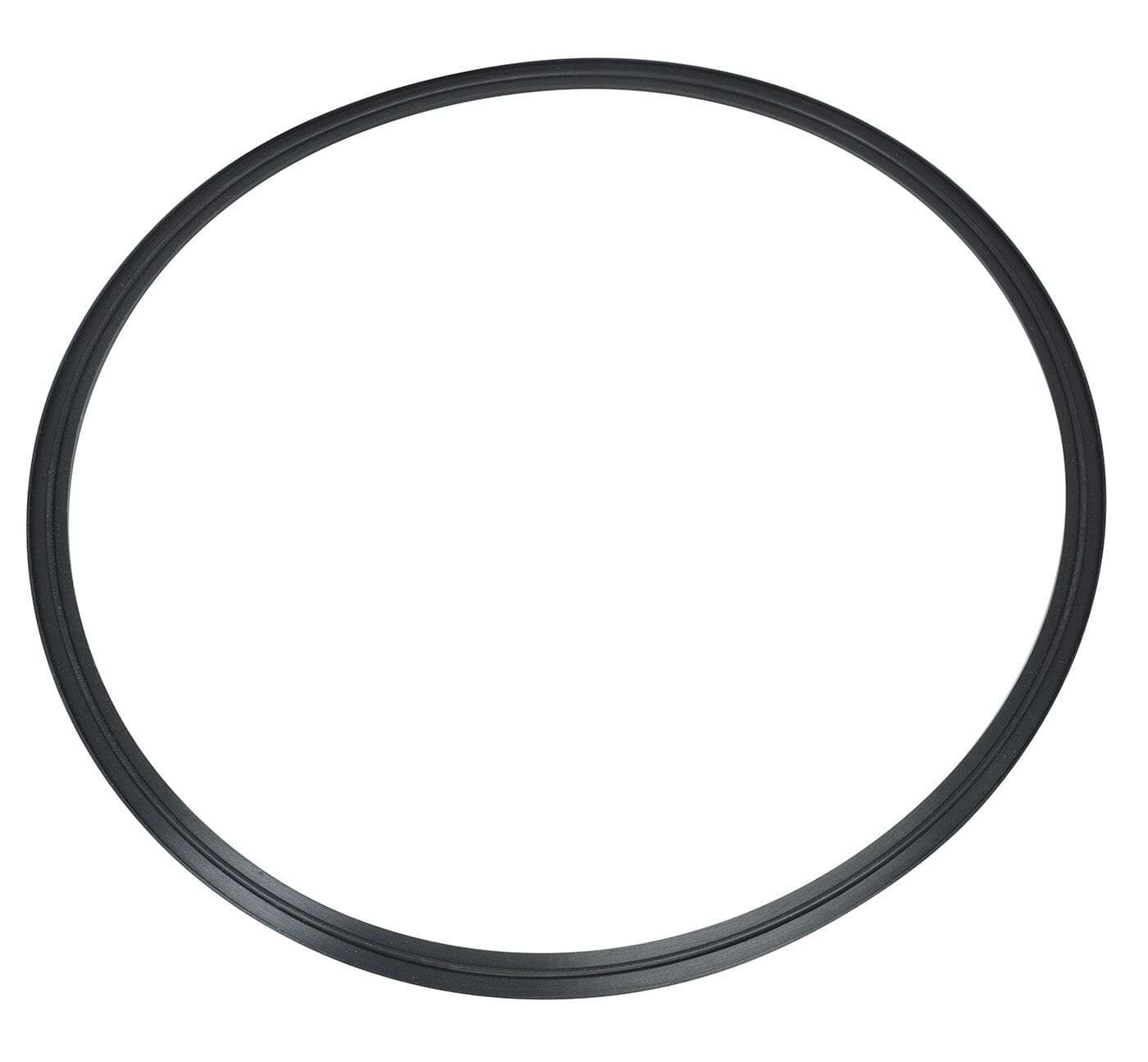

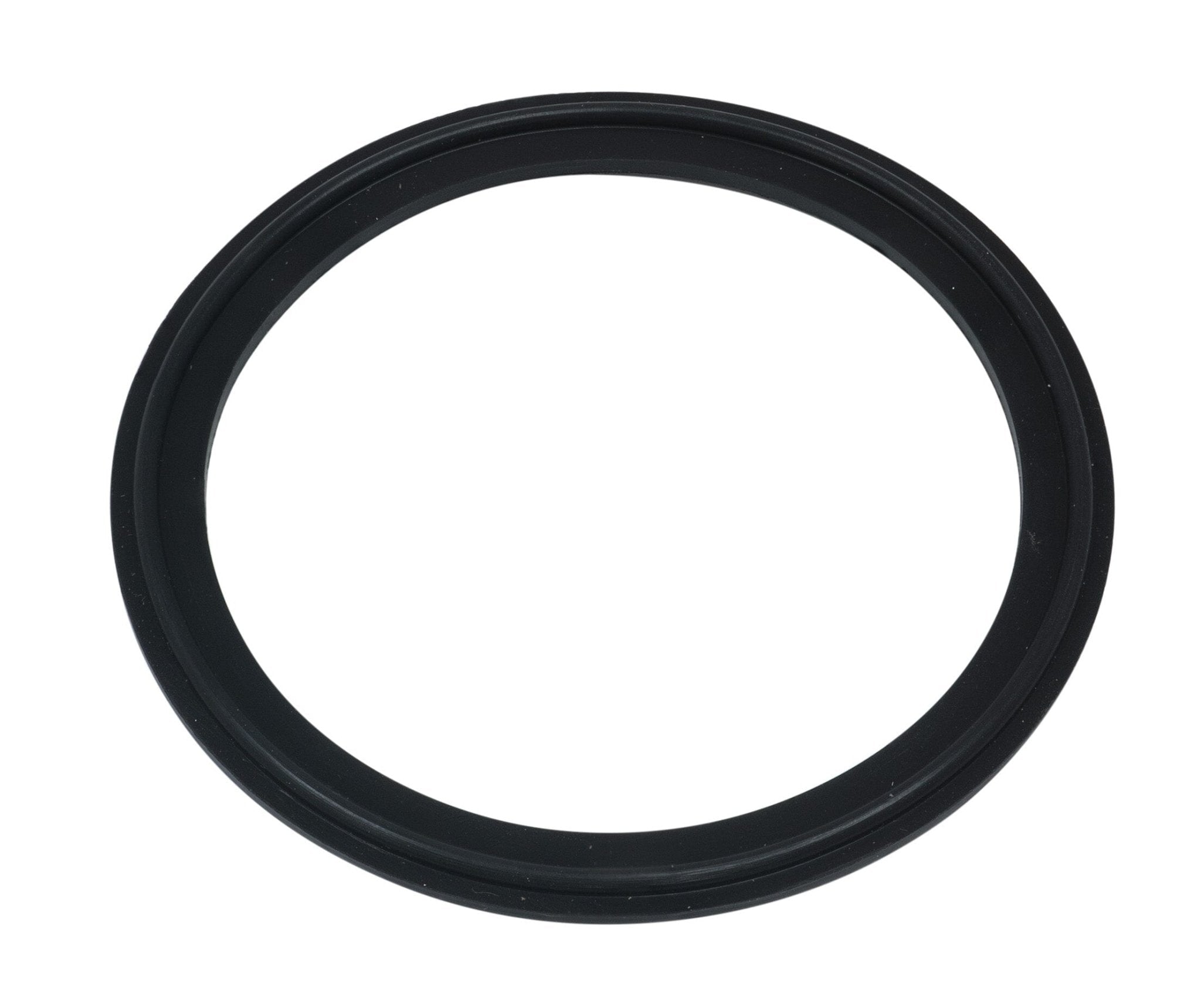

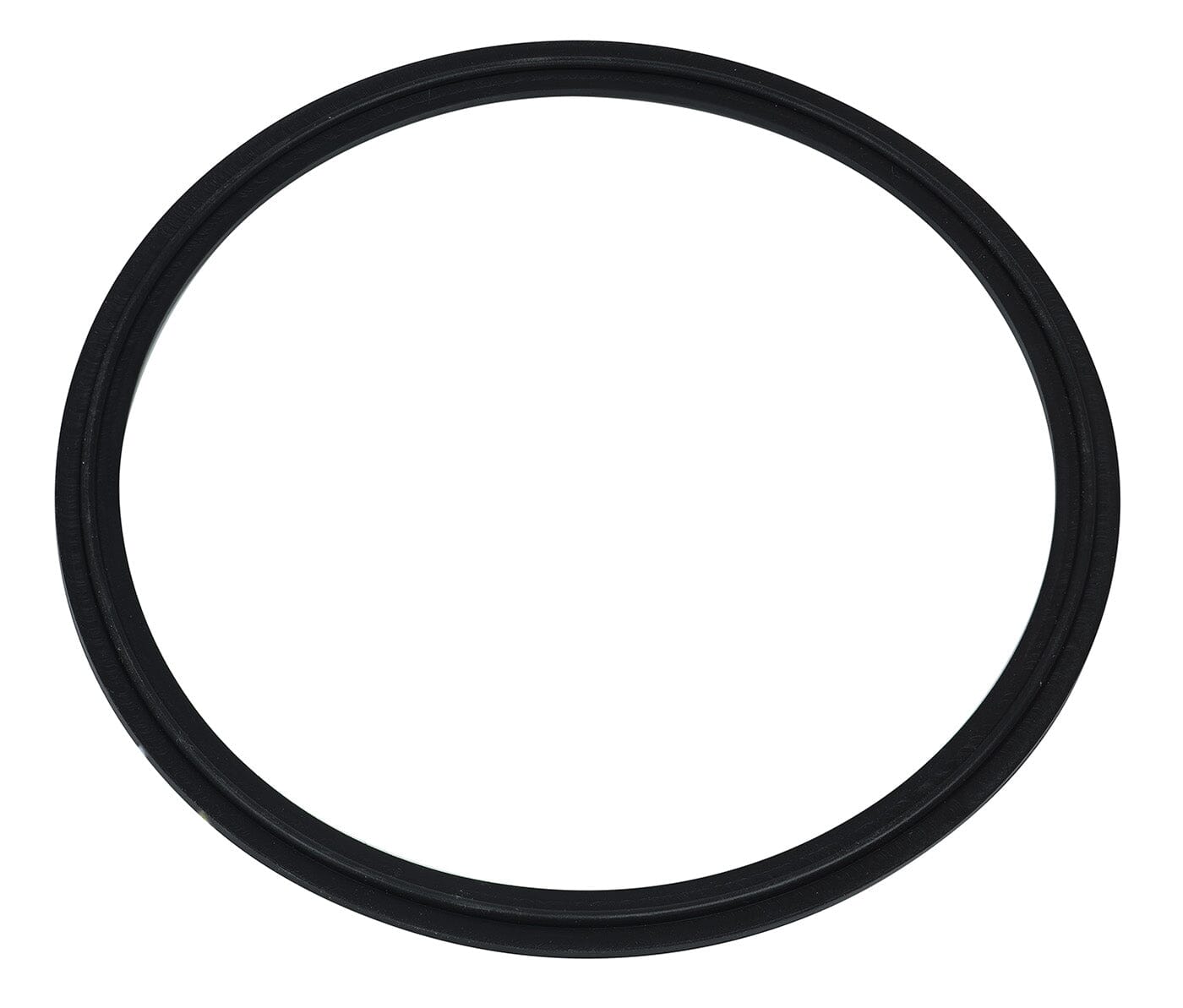

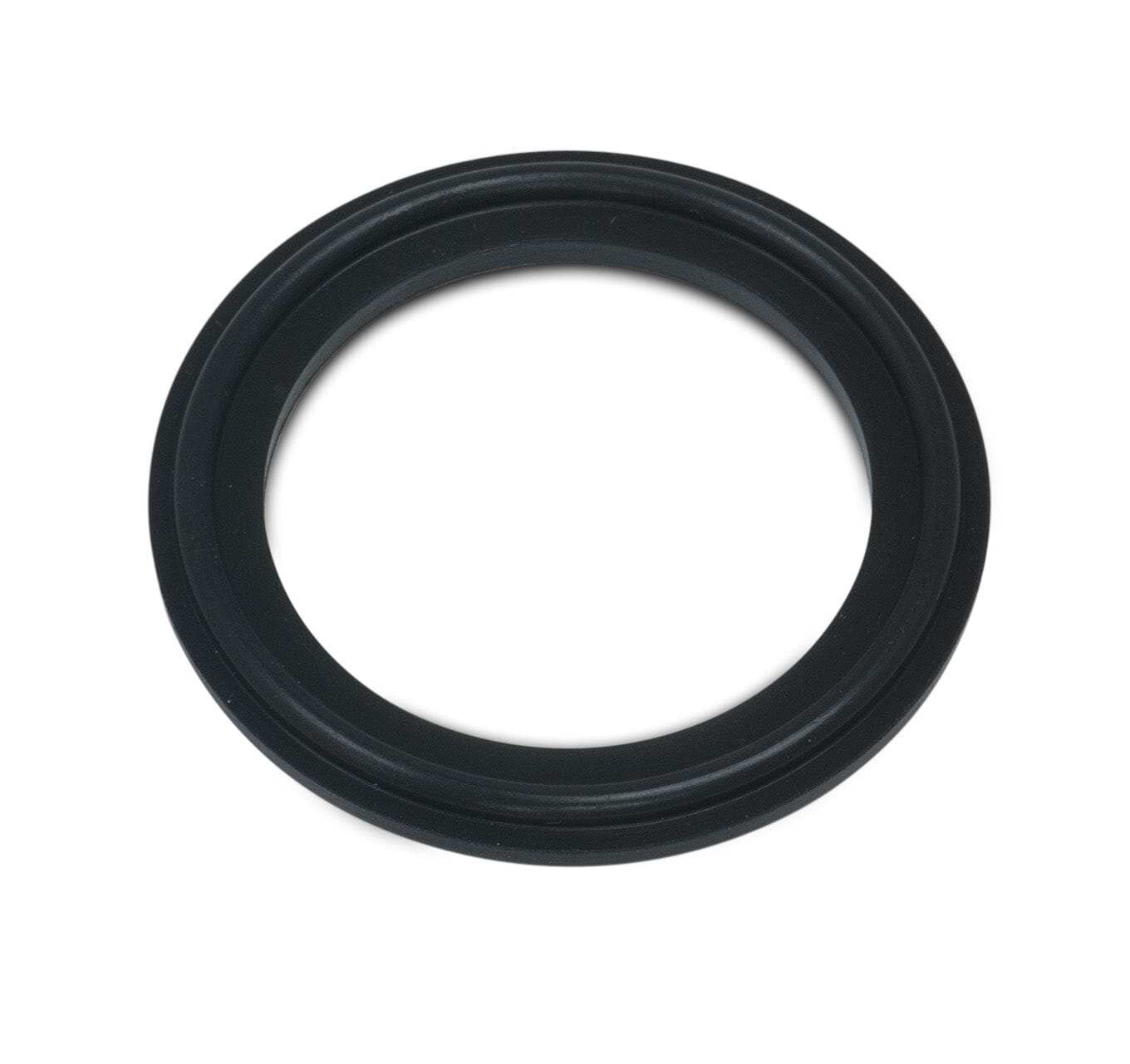

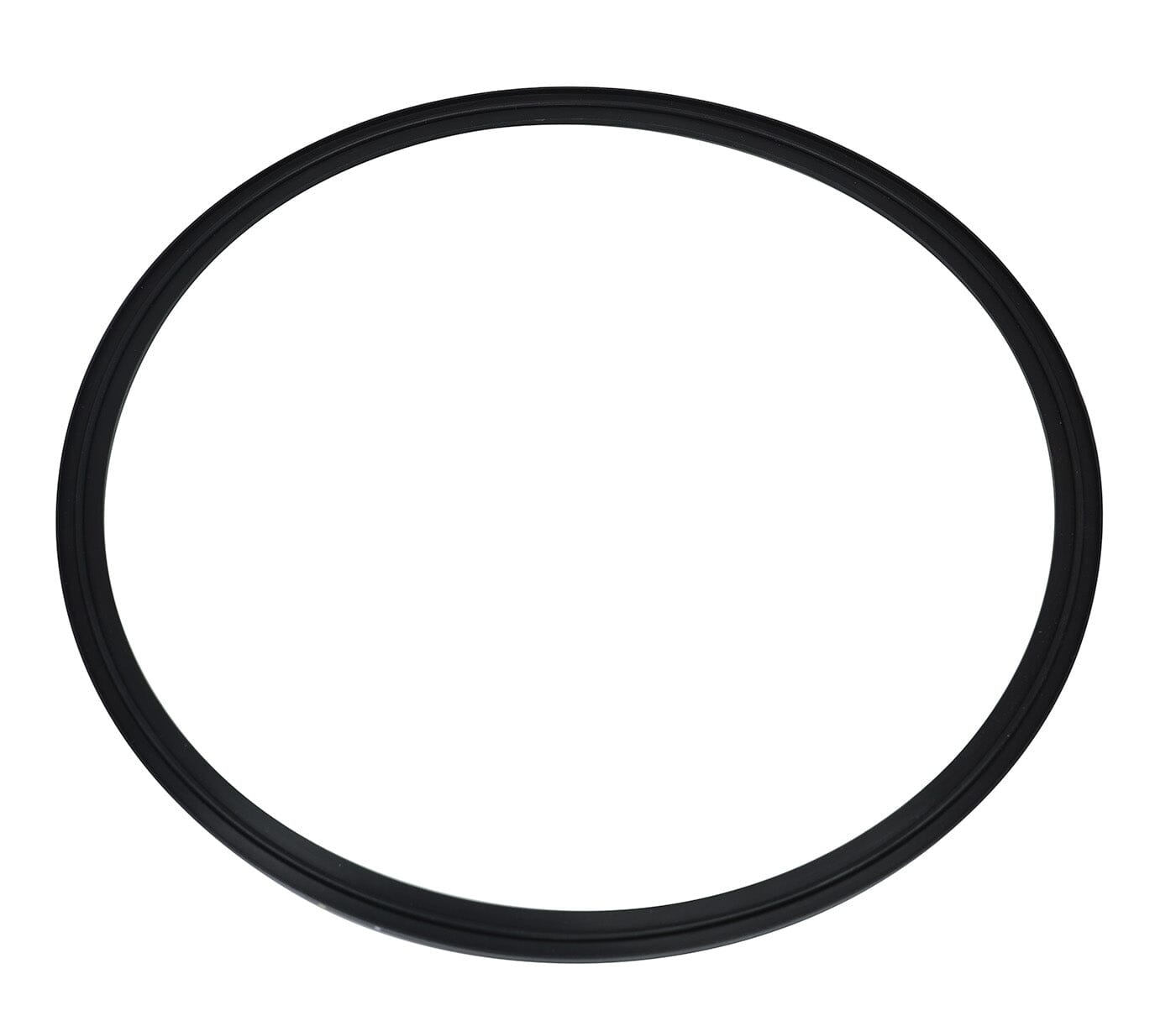

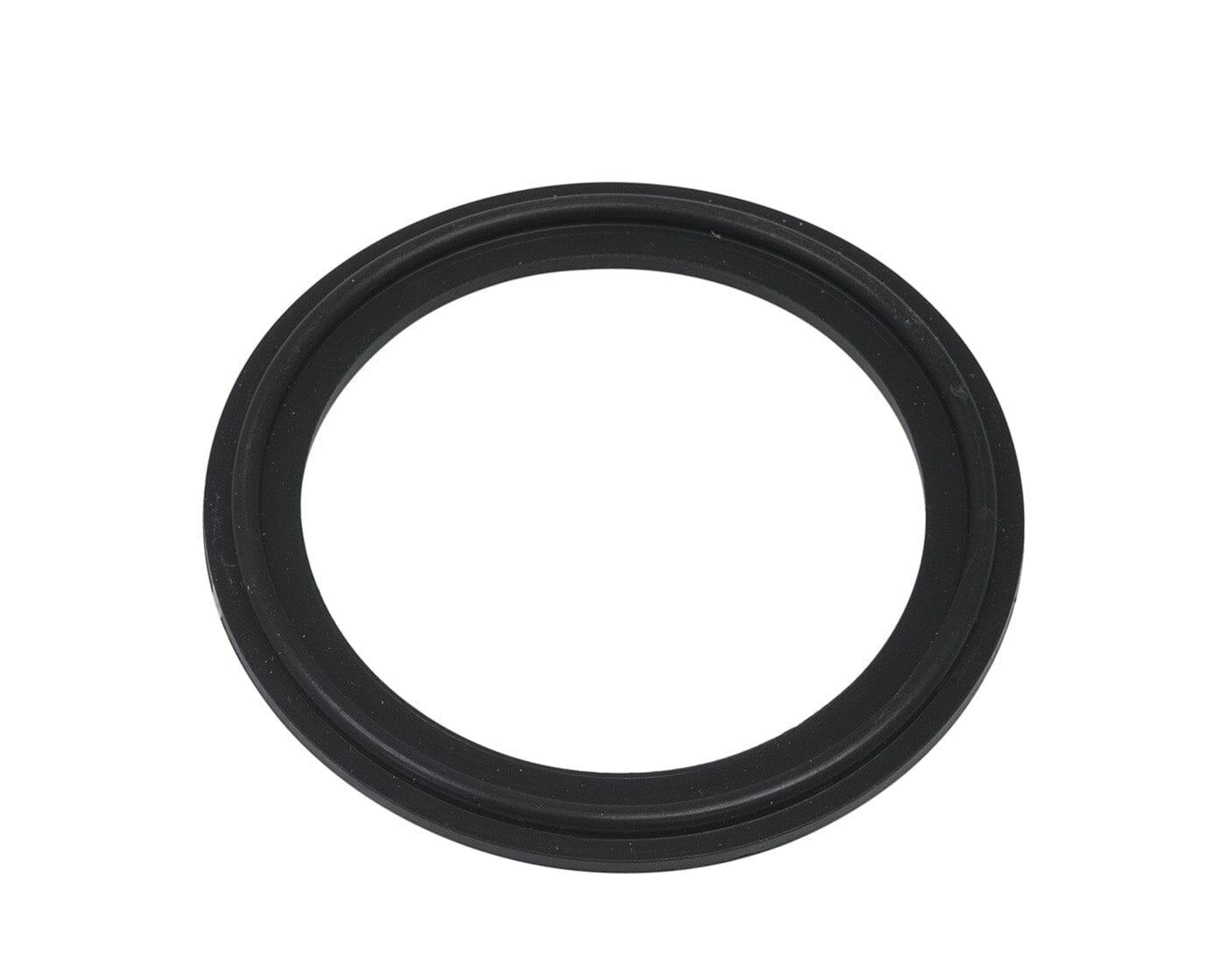

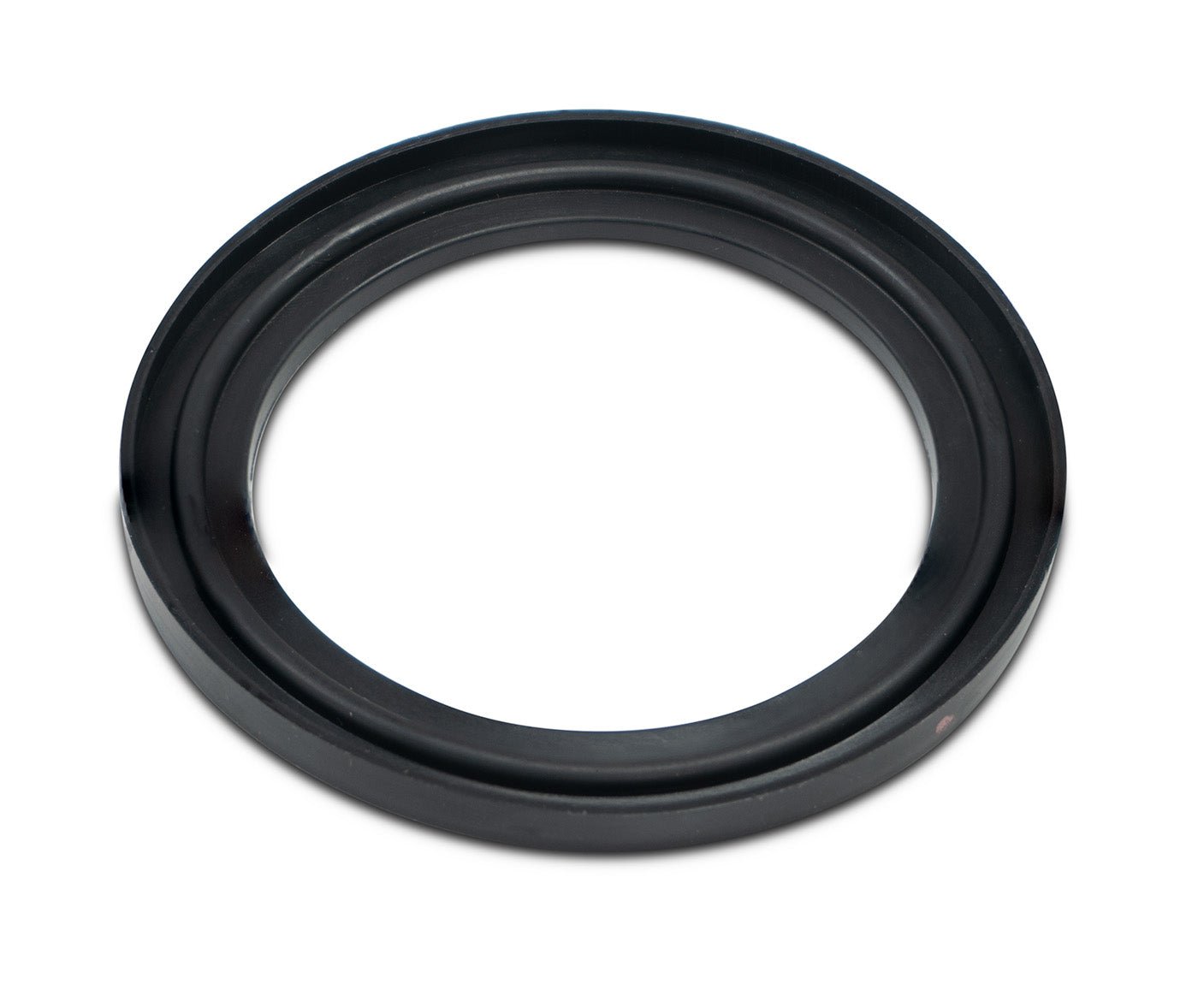

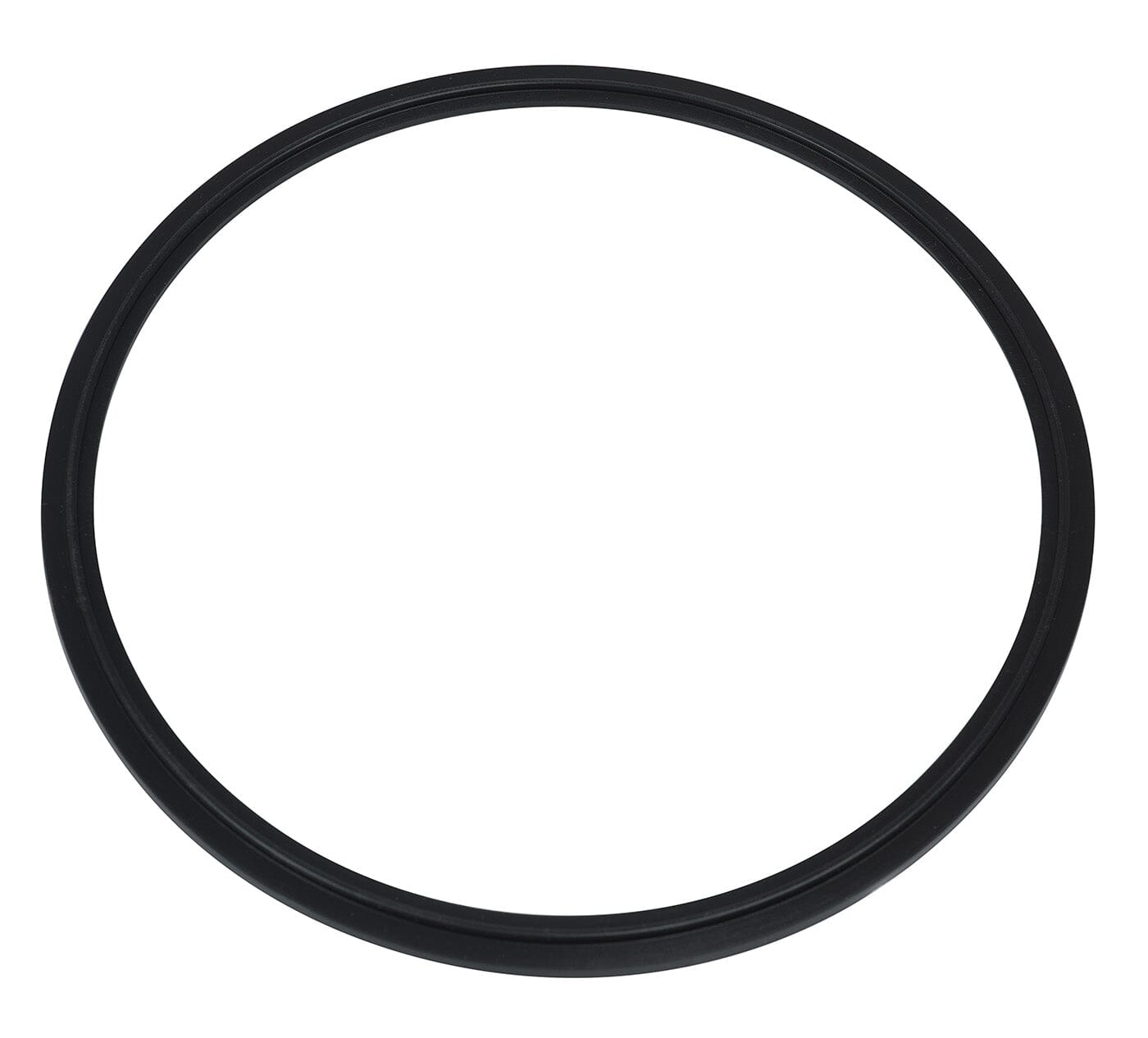

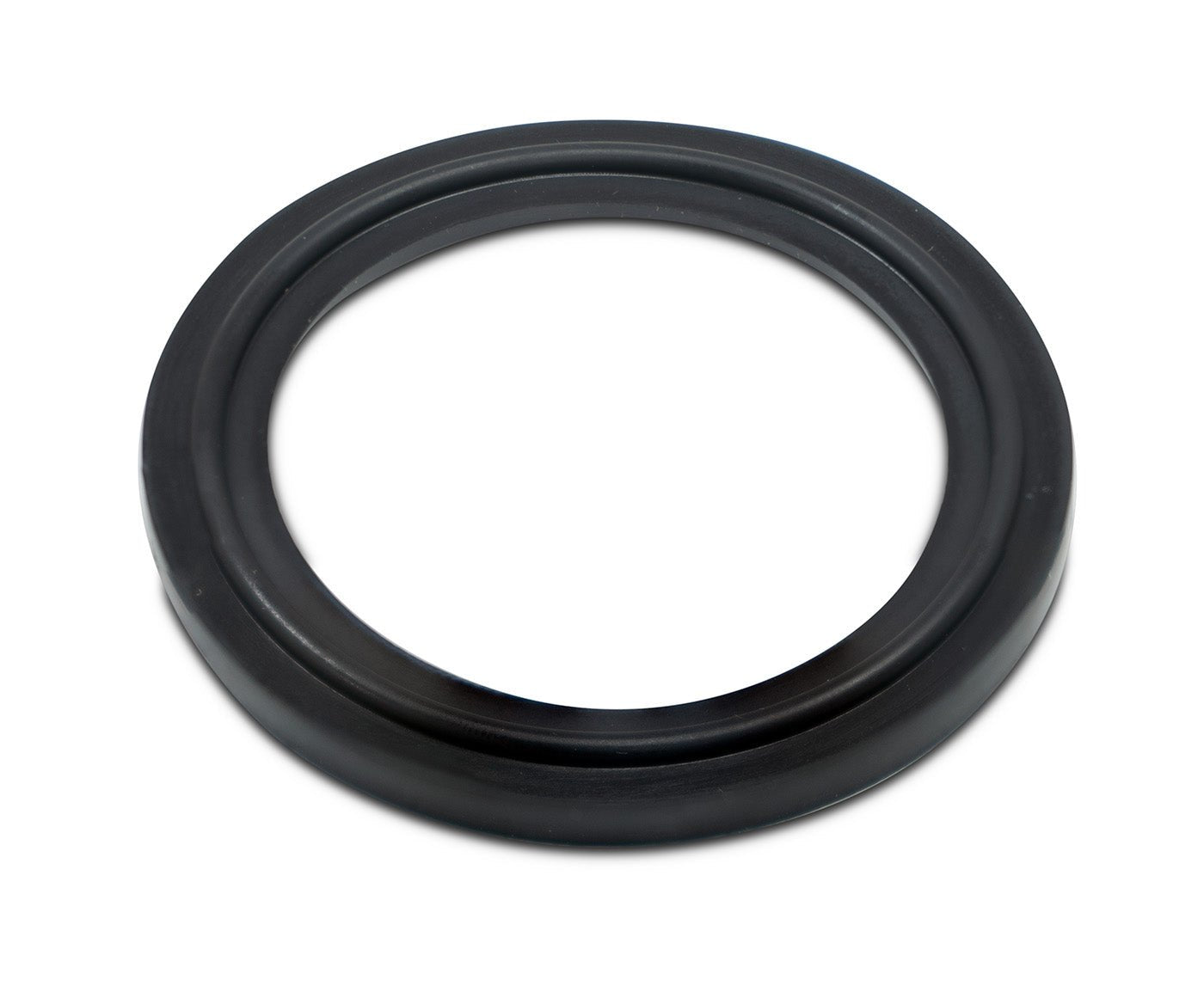

FKM Viton Tri-Clamp Gaskets

SKU: 40MPSFY-1.5

$3.00
Select Size:
Configuration:
Quantity:

FKM Viton Tri-Clamp Gaskets

Fluoroelastomer (FKM) gaskets are a great option for using higher temperatures in a closed-loop system or other steps of the extraction process including filtration and decarbing. FKM offers an excellent chemical compatibility with numerous solvents.

FKM Gaskets offer a higher temperature rating and better chemical compatibility than Buna rubber.

 Key Features:

  • High-temperature range
  • Better compressibility and springiness
  • Excellent resistance to butane and propane
  • Better tear resistance
  • Better chemical resistance
  • USP Certified
  • FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food.
  • FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products.

Sizes Available:

  • 1.5"
  • 2"
  • 3"
  • 4"
  • 6"
  • 8" - easy on flanged
  • 10" - easy on flanged
  • 12" - easy on flanged





                                                Technical Specifications:
    Material: Viton (FKM)
    Color: Black
    Connection Type: Tri-Clamps
    Conformance: FDA Compliant / Meets 3A Standards
    Thermal Properties:


    -Low Temperature Range -49°F
    -Minimum For Continuous Use (Static) -15°F
    -Brittle Point -49°F
    -High Temperature Range +400°F
    -Maximum for Continuous Use (Static) +400°F
    Gas Permeability: Excellent



    Chemical Compatibility:
    Butane A - Excellent
    Propane (liquified) A - Excellent
    Alcohols: -Amyl A - Excellent

    -Benzyl A - Excellent

    -Butyl A - Excellent
    -Diacetone D - Severe Effect
    -Ethyl A - Excellent
    -Hexyl C - Fair
    -Isobutyl B - Good
    -Isopropyl A - Excellent
    -Isopropyl A - Excellent
    -Methyl C - Fair
    -Octyl B - Good
    -Propyl A - Excellent



    BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
