PTFE Envelope Tri-Clamp Gaskets with Viton Filler - USA Made

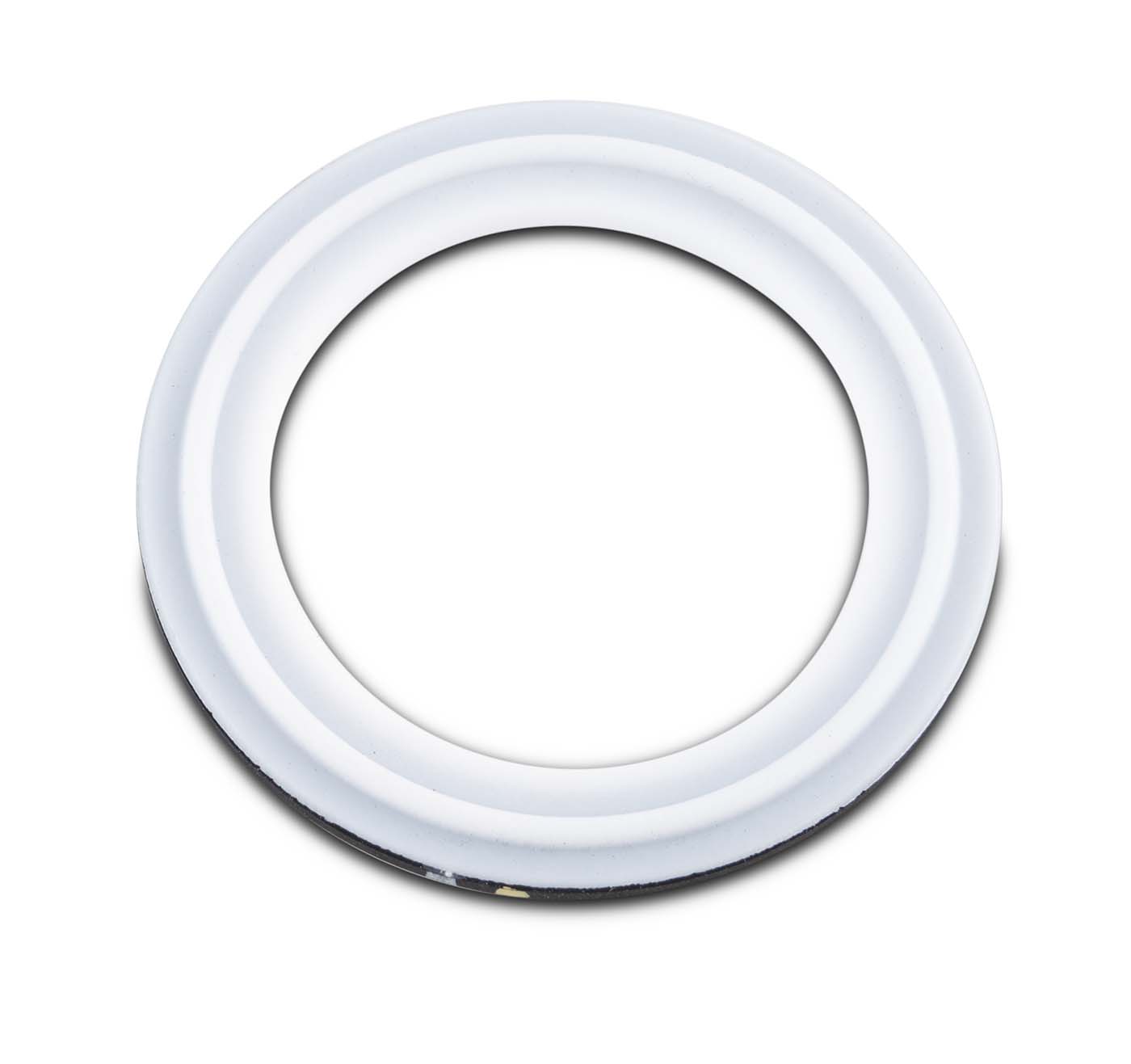

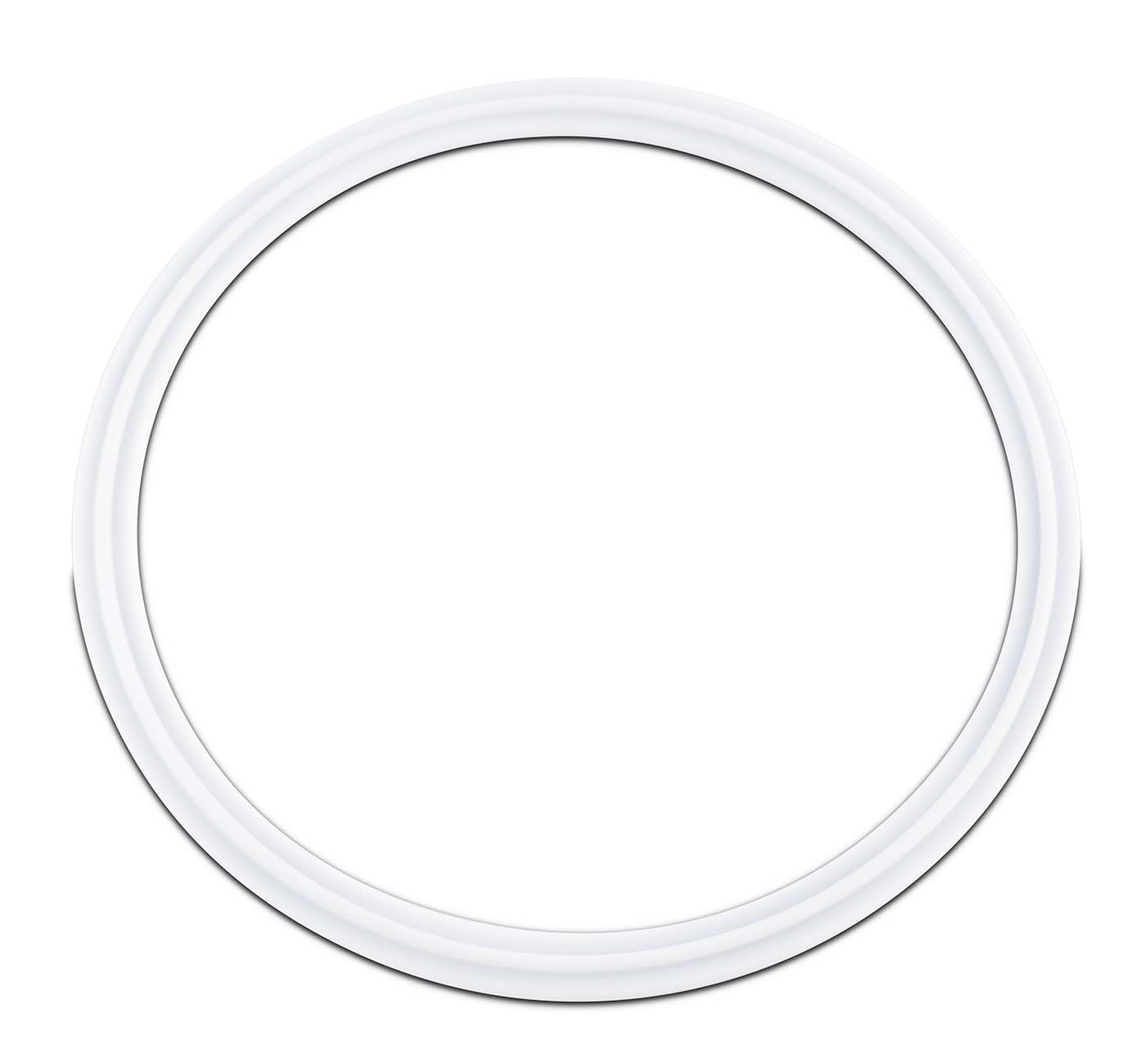

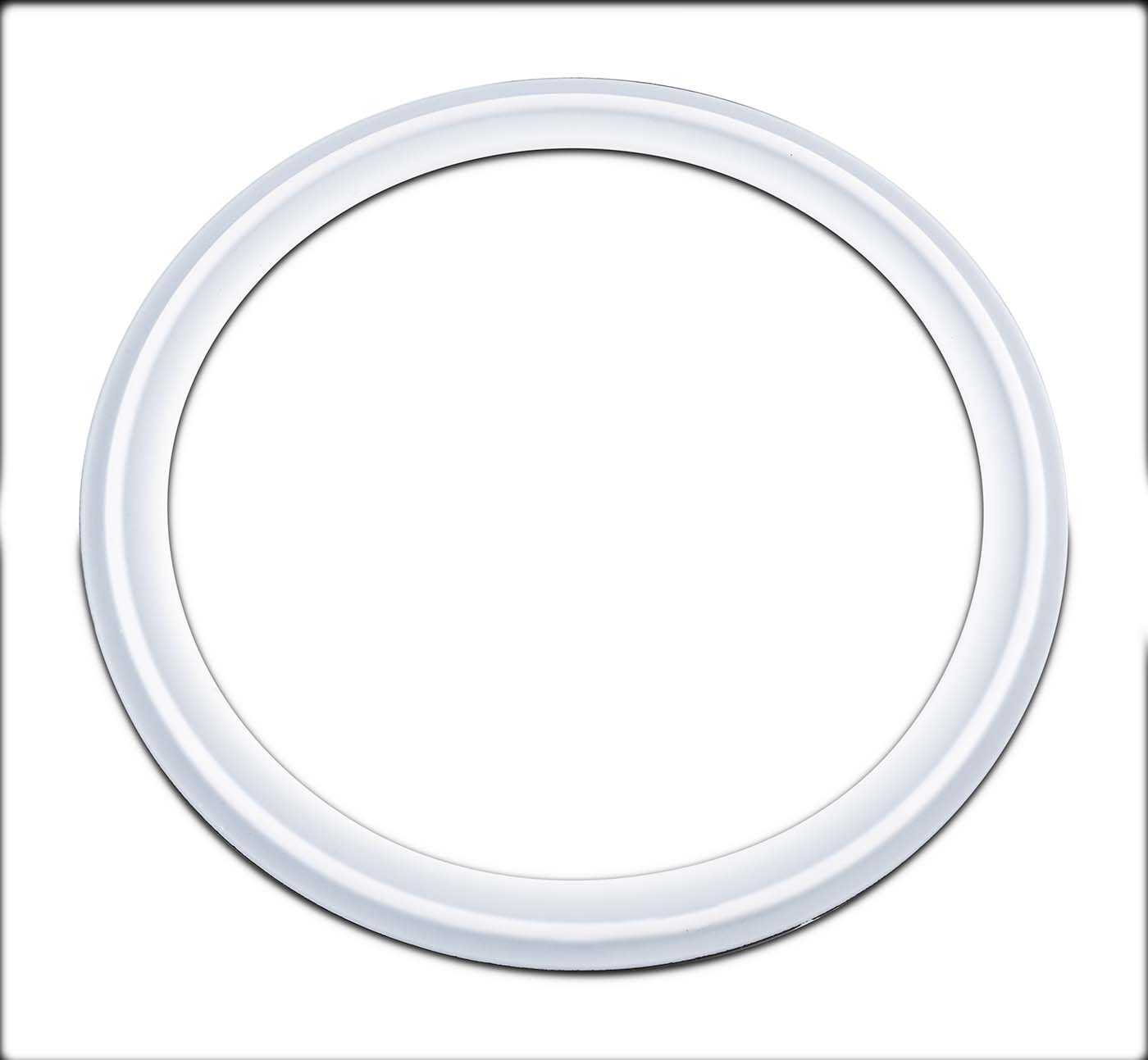

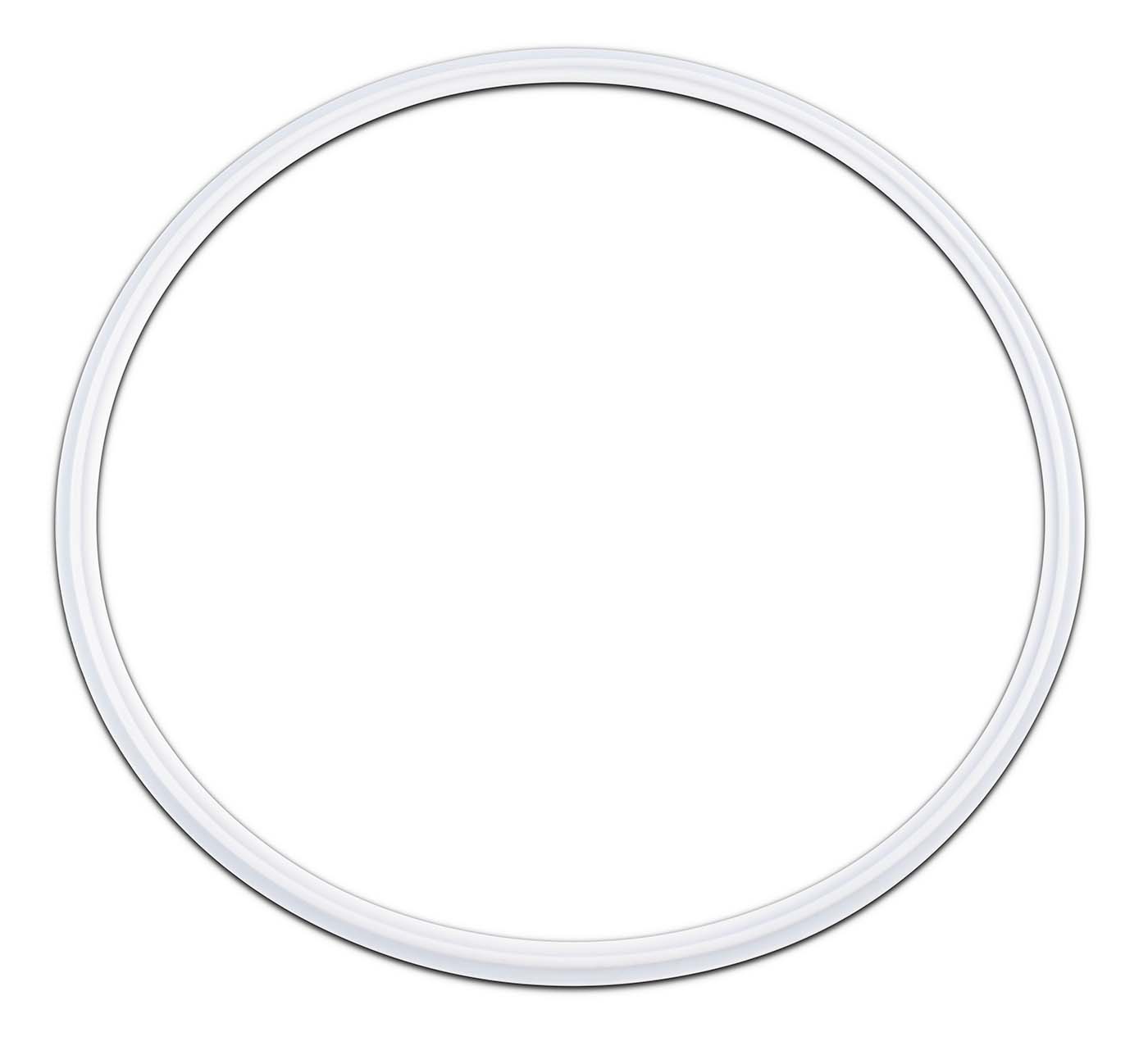

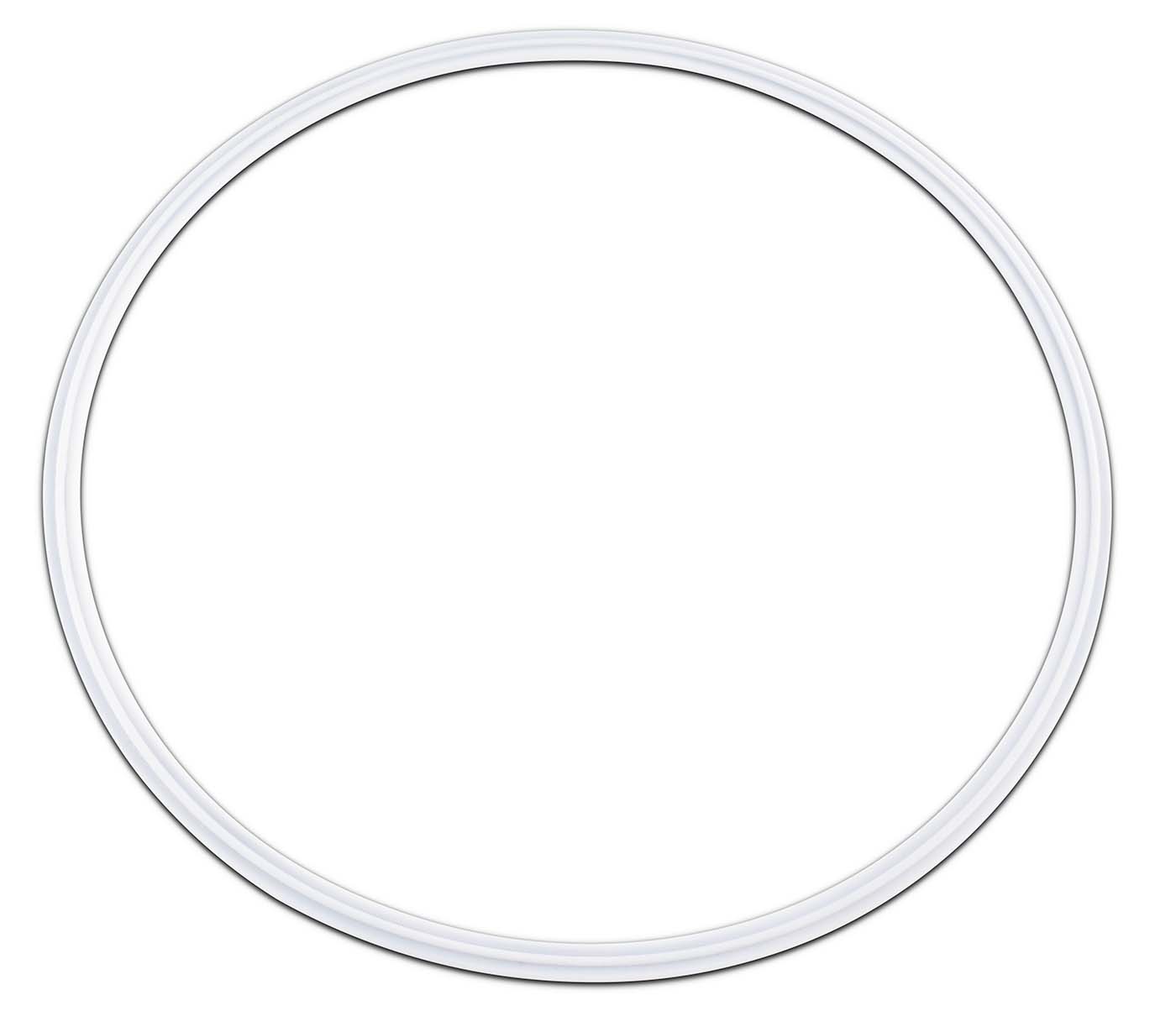

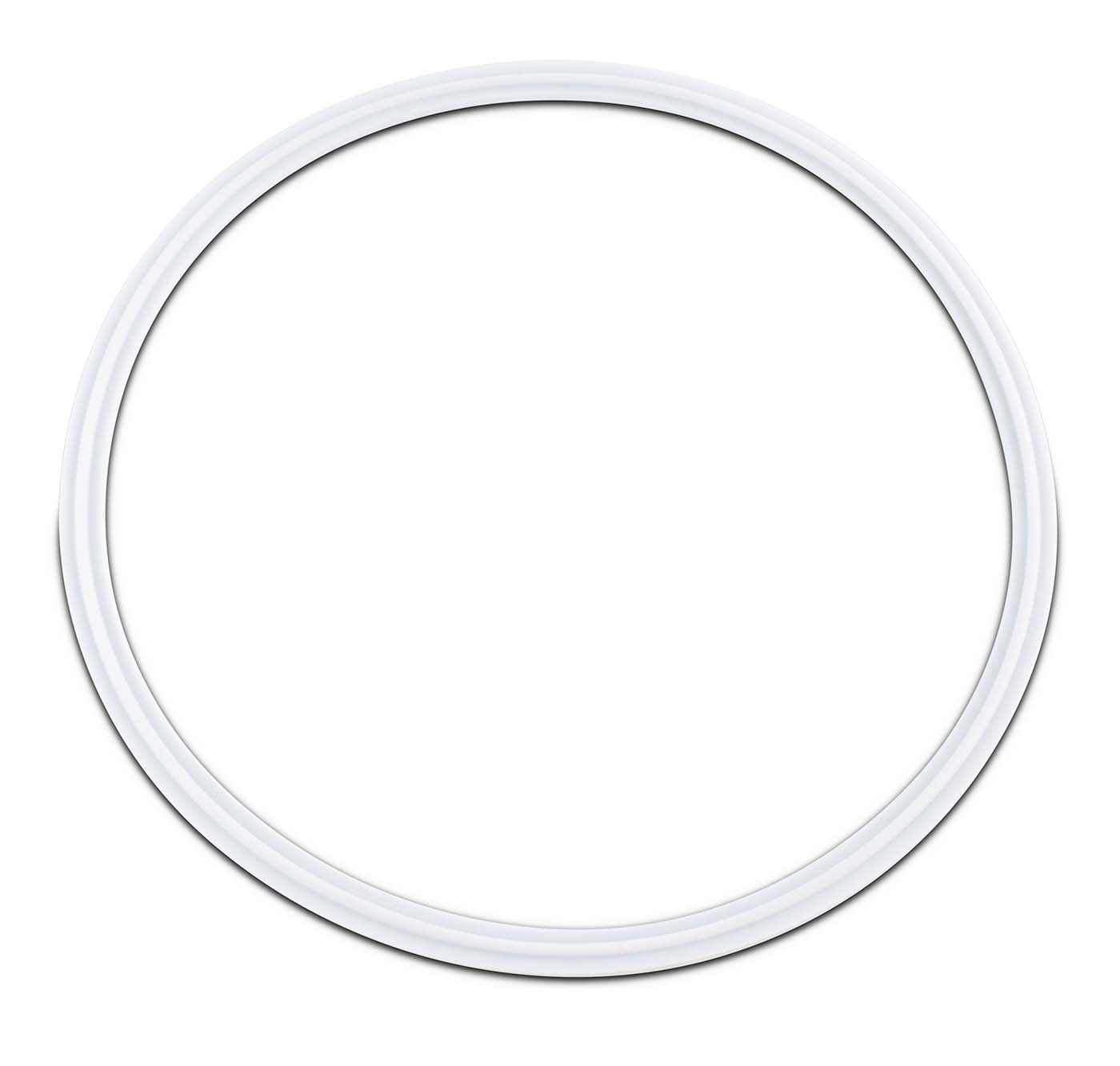

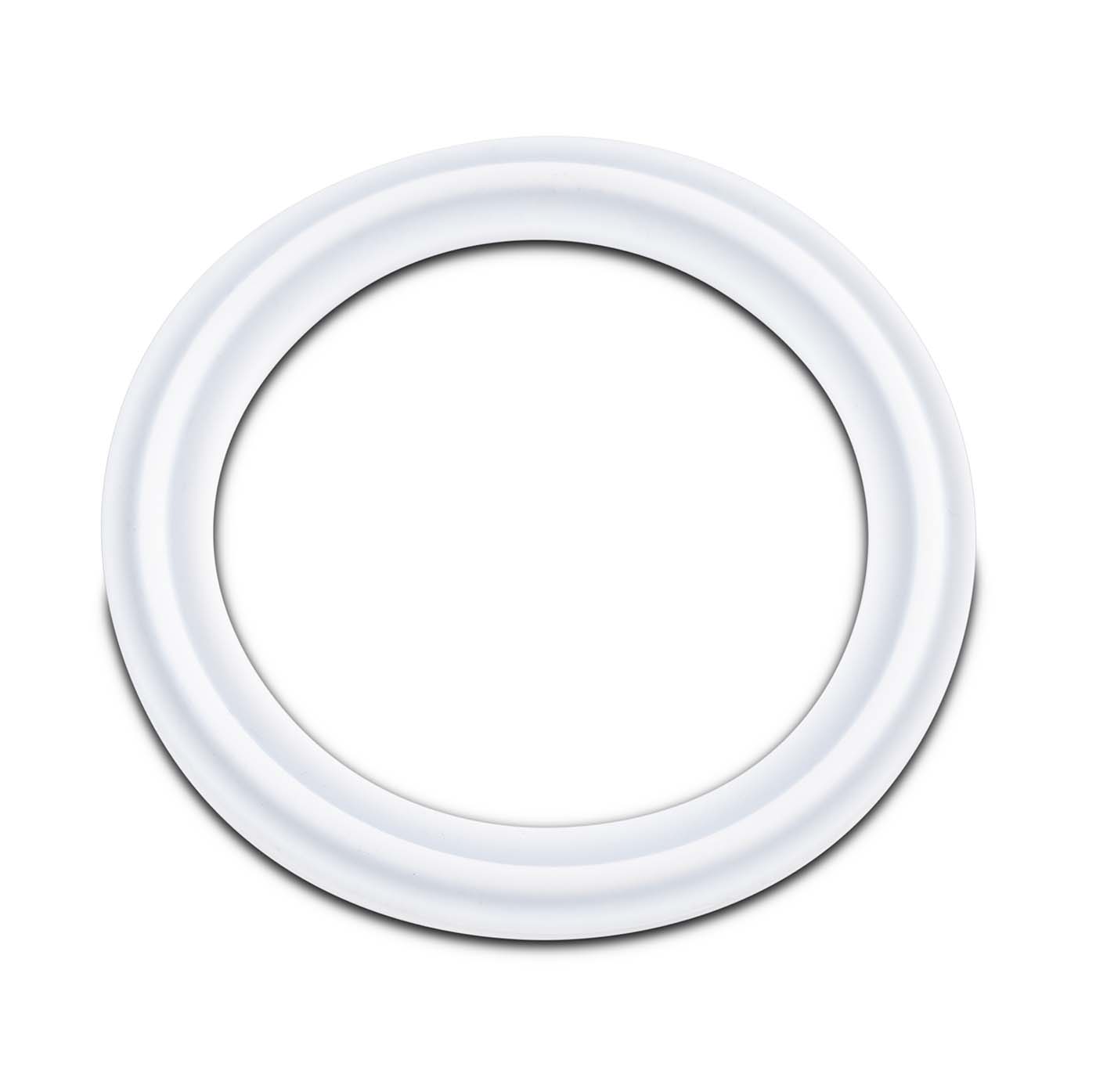

PTFE Envelope Tri-Clamp/Tri-Clover Gaskets with Viton Filler

PTFE Envelope Tri-Clamp Gaskets are the only choice when needing extreme chemical resistance and temperature range. These gaskets are extremely unique in their construction because they have a Viton filler for compressibility surrounded by an 'Envelope' of PTFE which creates a unique combination of chemical resistance while providing an exceptional sealing characteristic. Normal solid PTFE gaskets are very tough to seal on their own and are usually not recommended in vacuum applications due to the gasket being very rigid because PTFE is not very compressible by itself.  Tri-Clamp/ Tri-Clover Sanitary Fittings Gaskets create a pressure-tight seam between multiple stationary components, relying on a compression seal to prevent unwanted gas or liquid emissions.

***Note: Best Value Vacs ONLY recommends the use of PTFE Envelope gaskets with High Pressure clamps to ensure a positive seal on the system.

Key Features:

• Excellent resistance to almost all chemicals
• Excellent Temperature Range
• Excellent Cleanability due to PTFE (Teflon) Envelope
• No Chemical Leaching

Sizes Available:

• 1.5"
• 2"
• 3"
• 4"
• 6"
• 8"
• 10"
• 12"

BVV™ PTFE Gasket With Viton Filter - Data Sheet
