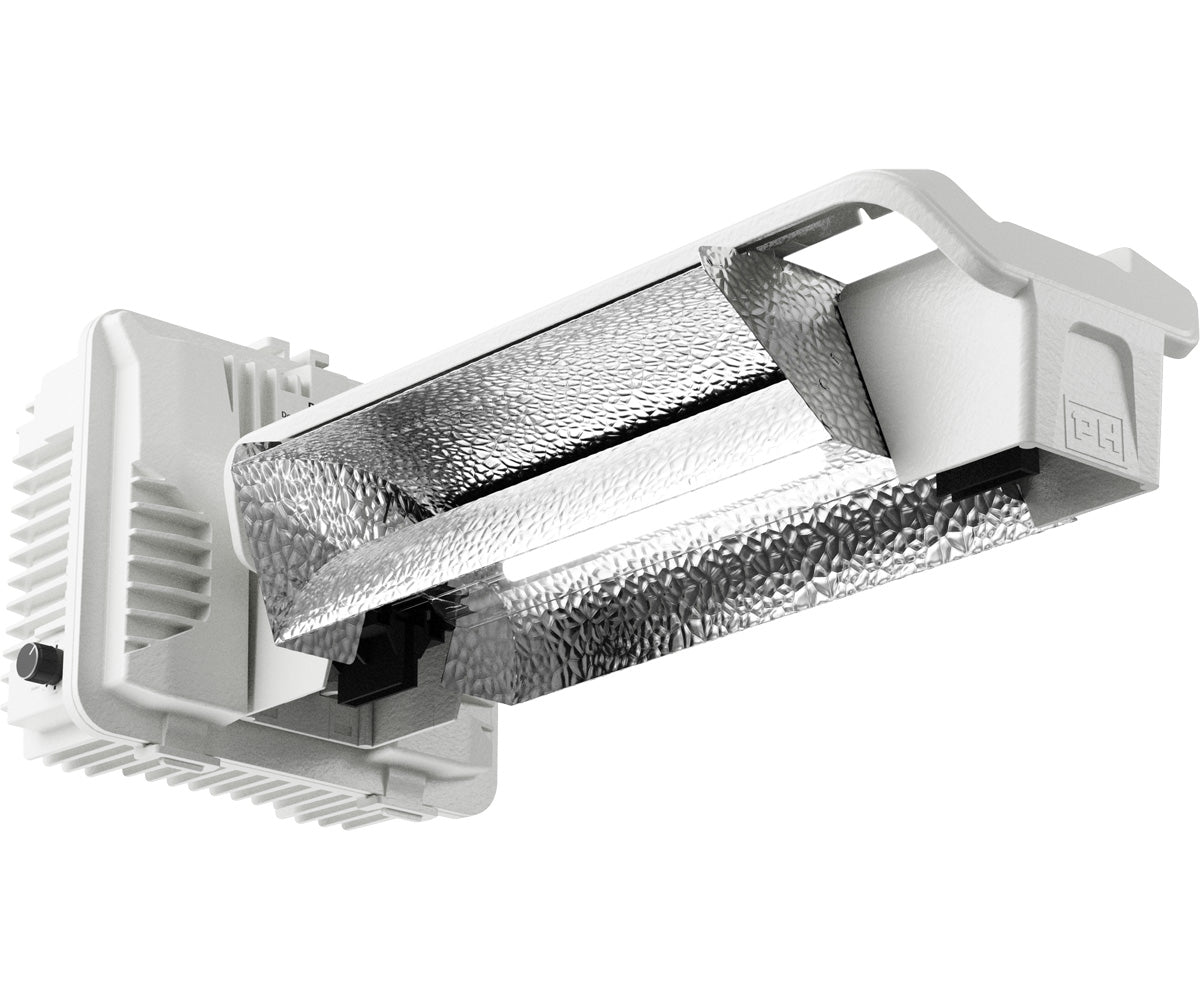

The 60 Series Commercial DE Open Lighting System is the newest generation of HID lighting from Phantom, the workhorse brand of reliable and trusted lighting solutions for professional growers worldwide. The 60 Series offers a compact and lightweight form factor with a modern design. The widespread of the open reflector provides remarkable uniformity across plant canopies. The louvered design effectively dissipates heat, while maintaining lower lamp operational temperatures in order to maximize PPF output. Easy installation and faster re-lamping process from the streamlined reflector design.
At the heart of the 60 Series System is the PHB6024 Phantom ballast, engineered to provide years of high-quality and reliable service. RJ12 0-11.5V DC dimming interface enables seamless connection to Autopilot PX2+ Series Advanced Lighting Controllers. Fully compatible with PHOTOBIO AC Power Distribution Tree cabling system to reduce electrical infrastructure costs with safe and simple plug & play installation.*
*Fixture and lamp comform to California 2022 Bulding Energy Efficiency Standards for Residential and Nonresidential Buildings, California Title 24, part 6, section 120.6, (h) Mandatory requirements for Controlled Environment Horticulture (CEH) spaces, 2. Indoor growing, horticultural lighting.; and 6. Greenhouses, horticultural lighting.
Ballast features:
- RJ signal jack interface provides full compatibility with Autopilot PX2+ Series Digital Lighting Controller
- 0-11.5V DC dimming input/output, with onboard repeater buss (up to 500+ fixtures)
- High-precision microprocessor control
- Six-way wattage output control: 600W, 660W, 750W, 825W, 1000W and 1150W + PX control mode
- Robust commercial design
- Superior reliability
- LED status indicator
- Internal RF shielding
- End of lamp life signal
- Auto-restrike feature protects valuable lamps from damaging power interruptions
- Aluminum cooling fins for optimal heat dissipation
- Suitable for use in damp locations
- Includes IP67 AC input connection and 277-400V 3' bare leads cord
- Includes 10’ RJ12 signal cable and RJ12 splitter
Open Reflector features:
- Double-ended system delivers higher PAR value with excellent uniformity
- Open design for maximum light output, optimum heat management, and longer lamp life
- Premium aluminum European hammertone material: 99.85% pure, 95% reflectivity
- Provides a broad, consistent light spread
- Compact design minimizes interference with sun in greenhouse applications
- The ideal reflector choice for lower mounting heights
- Highly efficient in overlapping multi-light configurations, requiring fewer reflectors to meet desired light levels
- K12 x 30s high temperature lamp holders
Premium European DE lamp features:
- High proportions of red and blue light promotes efficient photosynthesis
- Excellent PAR output (2100 µmol/s)
- Quartz glass outer jacket for superior optical quality
- Lamp design eliminates shadowing from arc tube support
- Designed for use with Phantom DE fixtures
*Recommended consultation of a licensed electrician working with electrical engineer following applicable electrical code and inspections.
