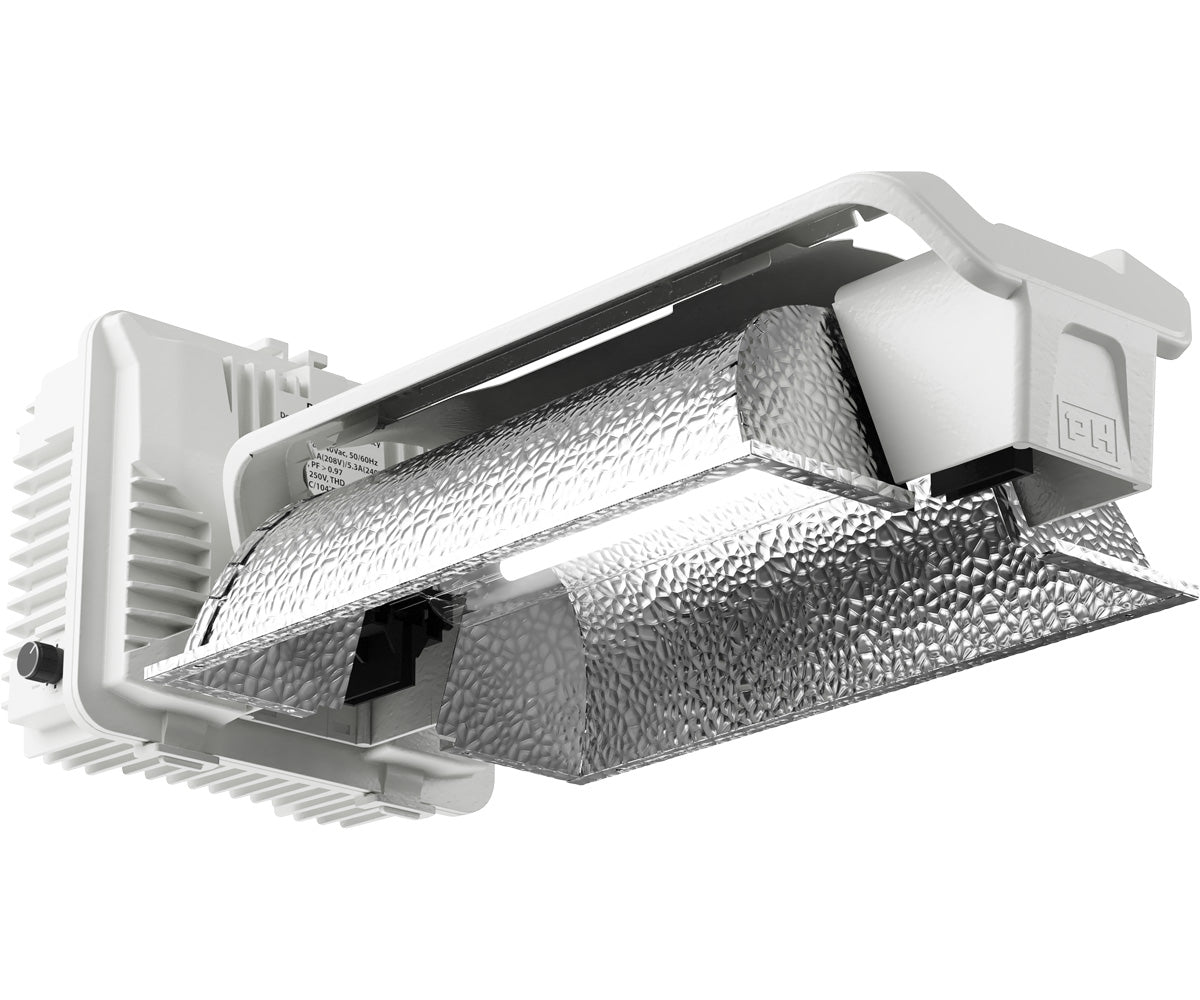

The 60 Series Commercial DE Enclosed Lighting System is the newest generation of HID lighting from Phantom, the workhorse brand of reliable and trusted lighting solutions for professional growers worldwide. The 60 Series offers a compact and lightweight form factor with a modern design. The medium spread of the enclosed reflector provides remarkable uniformity with higher average PAR to the plant canopy. Proprietary ridge vent design maintains ideal lamp operating temperature, which maximizes lamp output and lifetime.
At the heart of the 60 Series System is the PHB6024 Phantom ballast, engineered to provide years of high-quality and reliable service. RJ12 0-11.5V dimming interface enables seamless connection to Autopilot PX2+ Series Advanced Lighting Controllers. Fully compatible with PHOTOBIO AC Power Distribution Tree cabling system to reduce electrical infrastructure costs and provide safer and simpler and plug & play installation.*
Fixture and lamp comform to California 2022 Bulding Energy Efficiency Standards for Residential and Nonresidential Buildings, California Title 24, part 6, section 120.6, (h) Mandatory requirements for Controlled Environment Horticulture (CEH) spaces, 2. Indoor growing, horticultural lighting.; and 6. Greenhouses, horticultural lighting.
Ballast features:
- RJ12 signal jack interface provides full compatibility with Autopilot PX2+ Series Digital Lighting Controller
- 0-11.5V DC dimming input/output, with onboard repeater buss (up to 500+ fixtures)
- High-precision microprocessor control
- Six-way wattage output control: 600W, 660W, 750W, 825W, 1000W and 1150W + PX control mode
- Robust commercial design
- Superior reliability
- LED status indicator
- Internal RF shielding
- End of lamp life signal
- Auto-restrike feature protects valuable lamps from damaging power interruptions
- Aluminum cooling fins for optimal heat dissipation
- Suitable for use in damp locations
- Includes IP67 AC input connection and 277-400V 3' bare leads cord
- Includes 10' RJ12 signal cable and RJ12 signal splitter
Enclosed Reflector features:
- Double-ended system delivers higher average PAR value with excellent uniformity
- Proprietary ridge vent design for ideal lamp operational temperature
- Premium aluminum European hammertone material: 99.85% pure, 95% reflectivity
- Directs light down in a more focused pattern
- Compact design minimizes interference with sun in greenhouse applications
- Excellent efficiency at higher mounting heights
- Compounding performance in multi-light configurations, requires fewer reflectors to meet desired light levels
- K12 x 30s high temperature lamp holders
Premium European DE lamp features:
- High proportions of red and blue light promote efficient photosynthesis
- Excellent PAR output (2100 µmol/s)
- Quartz glass outer jacket for superior optical quality
- Lamp design eliminates shadowing from arc tube support
- Designed for use with Phantom DE fixtures
*Recommended consultation of a licensed electrician working with electrical engineer following applicable electrical code and inspections.
