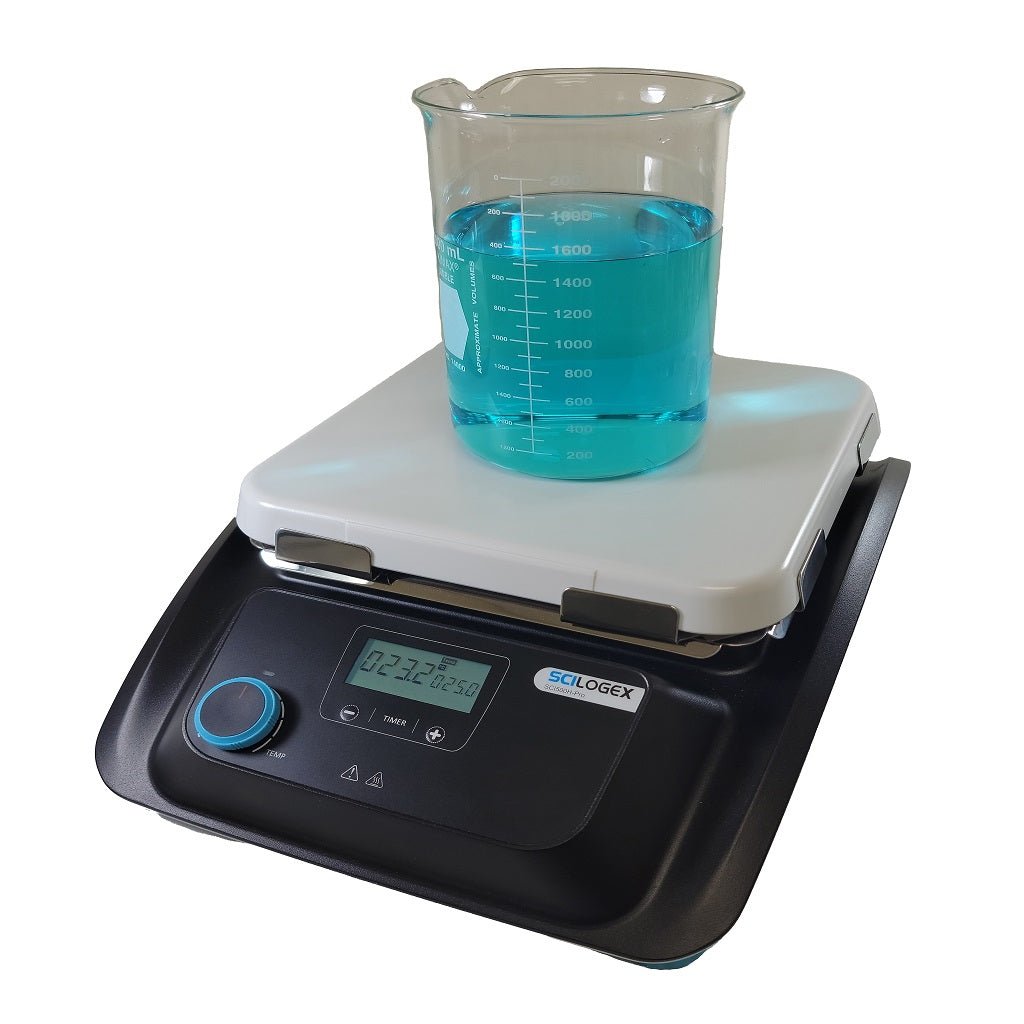

SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Magnetic Hotplate, ceramic-glass plate, 110V, 50/60Hz US Plug

SKU: 50311321159999

$1,500.00
Quantity:

SCILOGEX SCI500H-Pro LCD Digital 10x10 Hotplate, 500°C Max

SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Hotplate Features

  • LCD screen shows temperature, Max. temperature up to 500°C
  • 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
  • External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.2°C
  • The "Hot" warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
  • Heating temperature: room temperature ~500°C
  • The included SD Card can record the instrument's running data in real time.
  • Timing function: the heat time can be easily set.

SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Hotplate Specifications



Work plate Dimension[WxD] 254x254mm(10 x 10inch)
Work plate material Glass ceramic
Heating Position 1
Heating temperature range Room temp. to 500°C, increments 1°C
Temperature control accuracy ±1°C(<100°C)±1%(>100°C)
Safety temperature 540°C
Temperature,Time display LCD
Timer function 1min to 99h59min
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (±0.2°C)
"Hot" warning 50°C
Protection class IP21
Power class 1400W
Heating output 1350W
Voltage Frequency 100-120/200-240V 50/60Hz
Dimension[WxDxH] 328x424x138mm
Weight 7.18kg
Permissible Ambient temperature and humidity 5-40°C, 80%RH
