BVV 2540 Nanofiltration Skid

BVV 2540 Nanofiltration Skid

Note: This product carries 8 - 12 week lead time

Perform organic solvent recovery or botanical extract decolorization with ease with our 2540 nanofiltration skid. BVV's 2540 Nanofiltration Skid is designed to meet Class 1 Division 1 standards. With the ability to recover 30 gallons of ethanol per hour without the application of heat preserving target compounds and utilizing a fraction of the energy consumption of a traditional falling film.

Processing Power

• Capacity: 30 GPH, 15 GPH, or 45 GPH of solvent recovery.
• Solvents: Denatured Ethanol, Potable Ethanol, Methanol

Specifications

• 4X 2540 nanofiltration housings
• Stainless steel 6GPM pump with PTFE seals
• 5HP C1D1 1750 RPM Motor
• 5HP VFD 3/60/230 NEMA 4X enclosure (13A)
• Insulated 2"x18" Heat Exchanger
• Polyscience 1.5HP Chiller 230/60/1/23.1

• 700PSI Pressure Relief Valve
• C1D1 Flowmeter
• 2X 0-1000 PSI Pressure Gauges
• 1.5" Intake & Retentate Lines
• 1/2" Permeate & Pressure Relief Lines

• Footprint (DxWxH) 30"x39"x79"
• Weight: 400 lb
• Maximum Pressure Rating: 700PSI

Performance

• Variable Frequency Drive-based flow control

• Complete pressure control with manual pressure controls
• Retentate cooling with inline Heat exchanger & chiller
• 700PSI pressure relief valve with diversion line

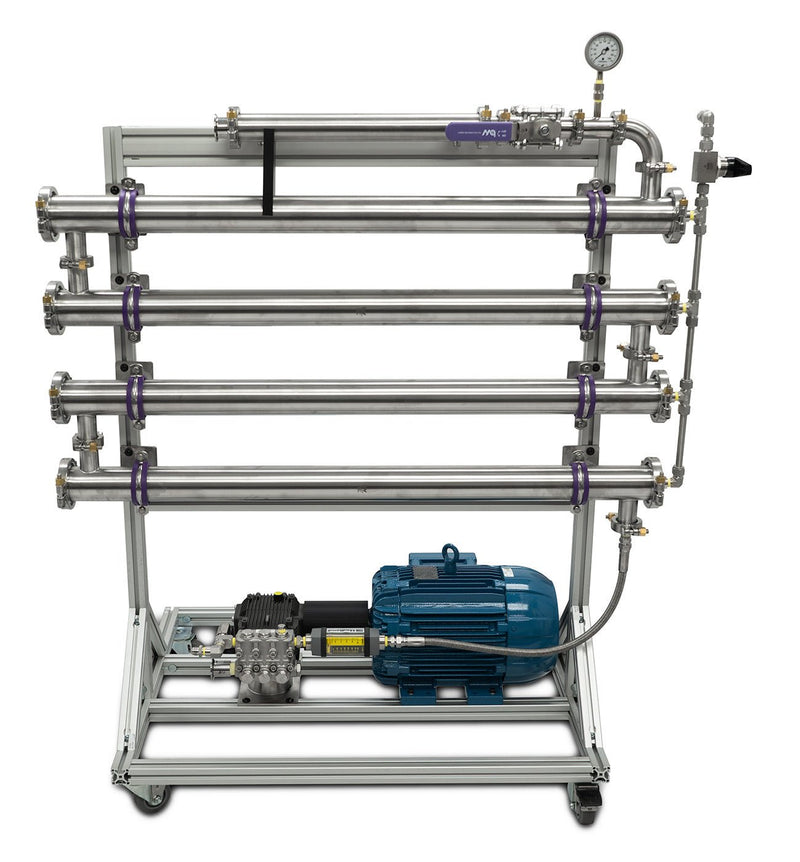

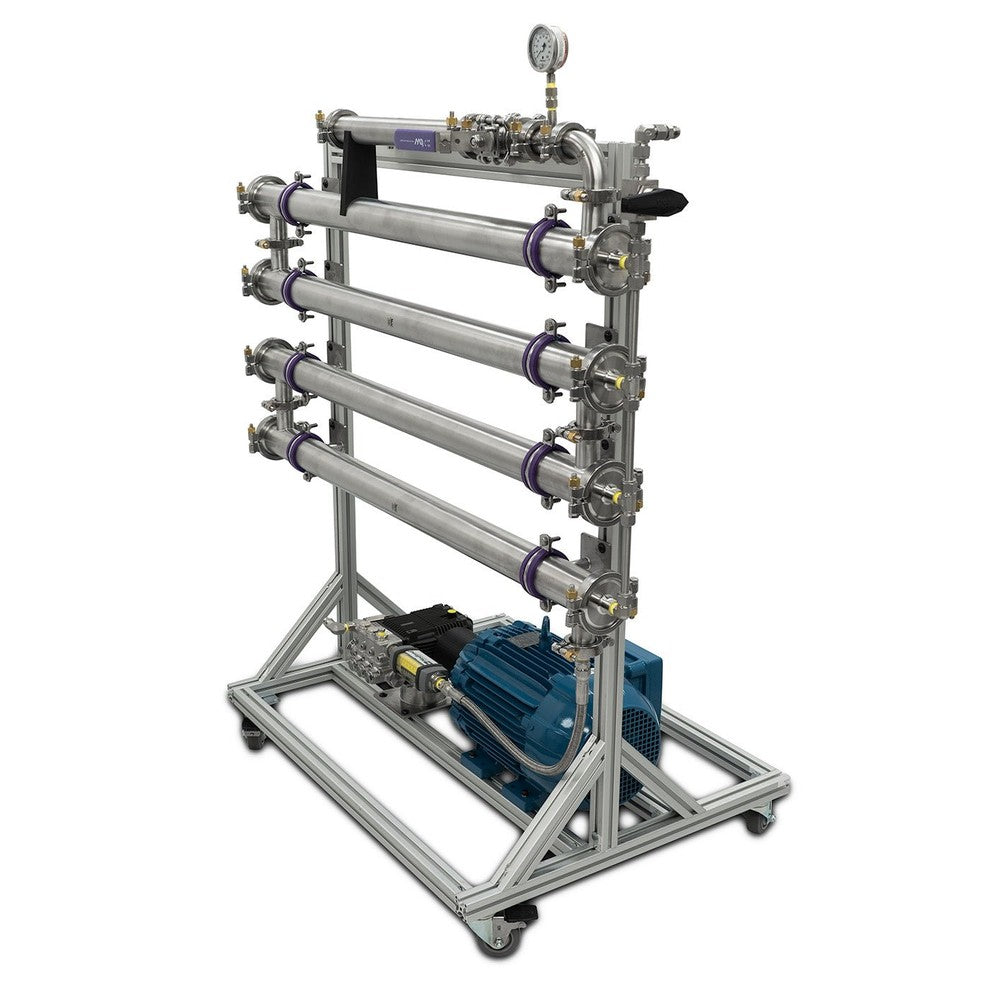

*Components shown are subject to change*
*This unit is meant for bulk solvent recovery, 90% of the total volume of solvent an additional solvent recovery apparatus is recommended to evaporate to dryness*
