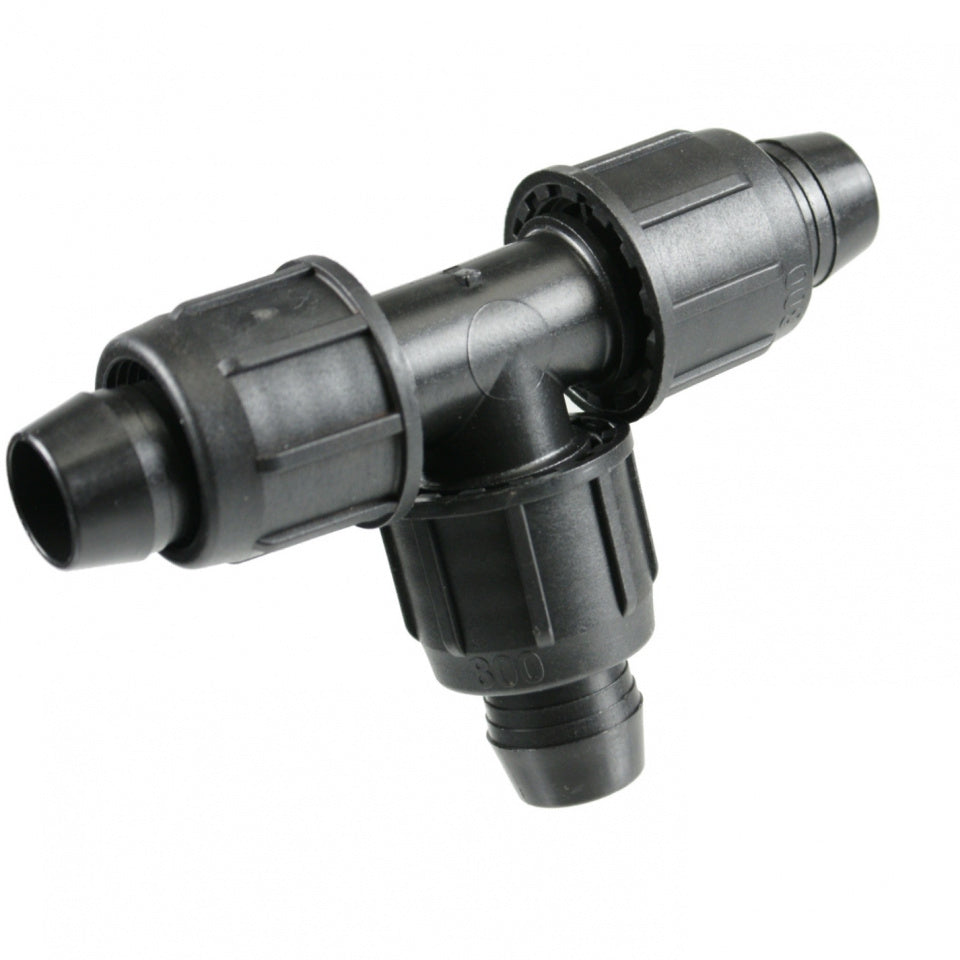

About Perma-Loc Drip Irrigation Fittings:
Perma-Loc fittings and adapters are heavy duty reusable connectors for all your connection needs. Perma-Loc fittings require no special tools to connect to tubing or tape. Perma-Loc fittings can be used on blank tubing or drip line.
-
To Use: Simply twist the locking collar back towards the center of the fitting, exposing the barb. Then push tubing or tape over the barbed end. Next, hand-tighten the locking collar over the tubing or tape for a permanent, secure fit.
-
To Remove: Just loosen locking collar, pull tube off, and re-use as needed.
Perma-Loc fittings look similar to traditional flange and locking nut plumbing connections; however, in most cases, they work differently. Unlike a typical locking nut which comes off the fitting and slides over the tubing, a Perma-Loc locking nut is not removed from the fitting.
A Perma-Loc Tubing Elbow is used to connect two pieces of the same size polyethylene tubing to achieve a 90° turn.
| Perma-Loc Series |
Nominal Size |
Acceptable Inside Tubing Diameter |
Acceptable Wall Thickness |
| 500 |
3/8" |
.510" to .580" |
.035" to .055" |
| 600 |
1/2" |
.590" to .630" |
.025" to .050" |
| 800 |
3/4" |
.790" to .845" |
.045" to .065" |
| 1000 |
1" |
1.025" to 1.085" |
.045" to .070" |
