HYDRO FROST Commercial Water Chiller

The HYDRO FROST Commercial Water Chiller holds nutrient solution and process water at a stable target temperature across three capacities. Every unit runs a high-performance rotary compressor and a titanium coaxial heat exchanger, with oxidation protection across all wetted components so the chiller tolerates fertigated nutrient solution and salt water alike.

Chillers are selected by reservoir volume rather than by room size, from a 400 gallon single-room reservoir up to a 1000 gallon central tank. The units integrate into recirculating deep water culture, aeroponic and fertigation loops, and are equally suited to commercial cold plunge, aquarium and process water applications. All models ship on a pallet and require a licensed electrician for installation.

Available Options

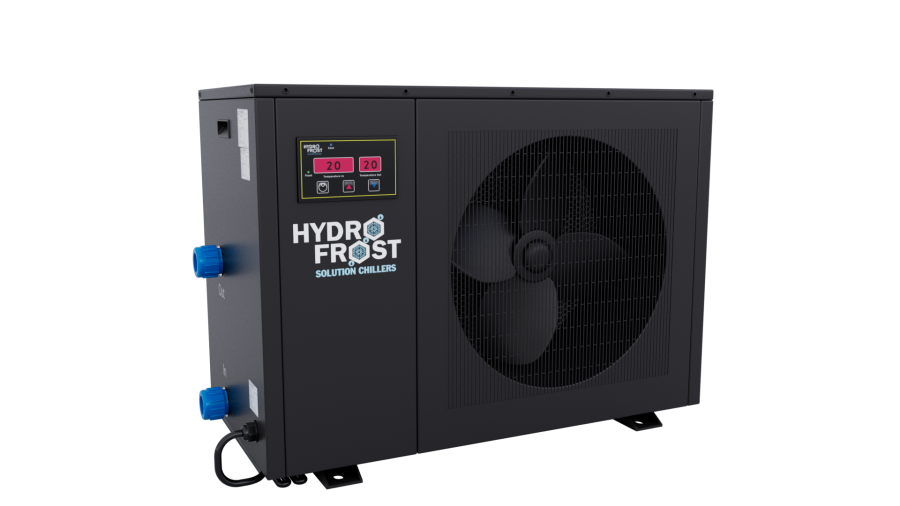

2HP - maximum tank size 400 gal (1514 Lt) - cooling capacity 5,200 W (17,730 BTU/HR) - 220-230V / 60Hz - rated power 1550 W - current 7.5A to 8.2A - R410A - recommended flow over 1189 Gal/H - inlet and outlet 1 in. (25.4 mm) - 31 x 16 x 23 in. - 121 lbs (55 kg)

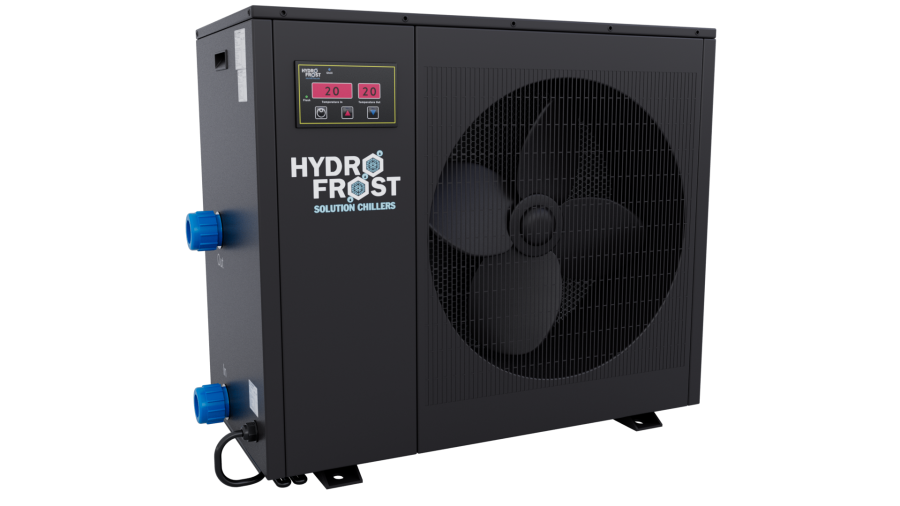

3HP - maximum tank size 600 gal (2271 Lt) - cooling capacity 7,200 W - 220-230V / 60Hz - rated power 2400 W - current 11.2A to 12.5A - R410A - recommended flow over 1320 Gal/H - inlet and outlet 1.5 in. (38.1 mm) - 31 x 16 x 27 in. - 132 lbs (60 kg)

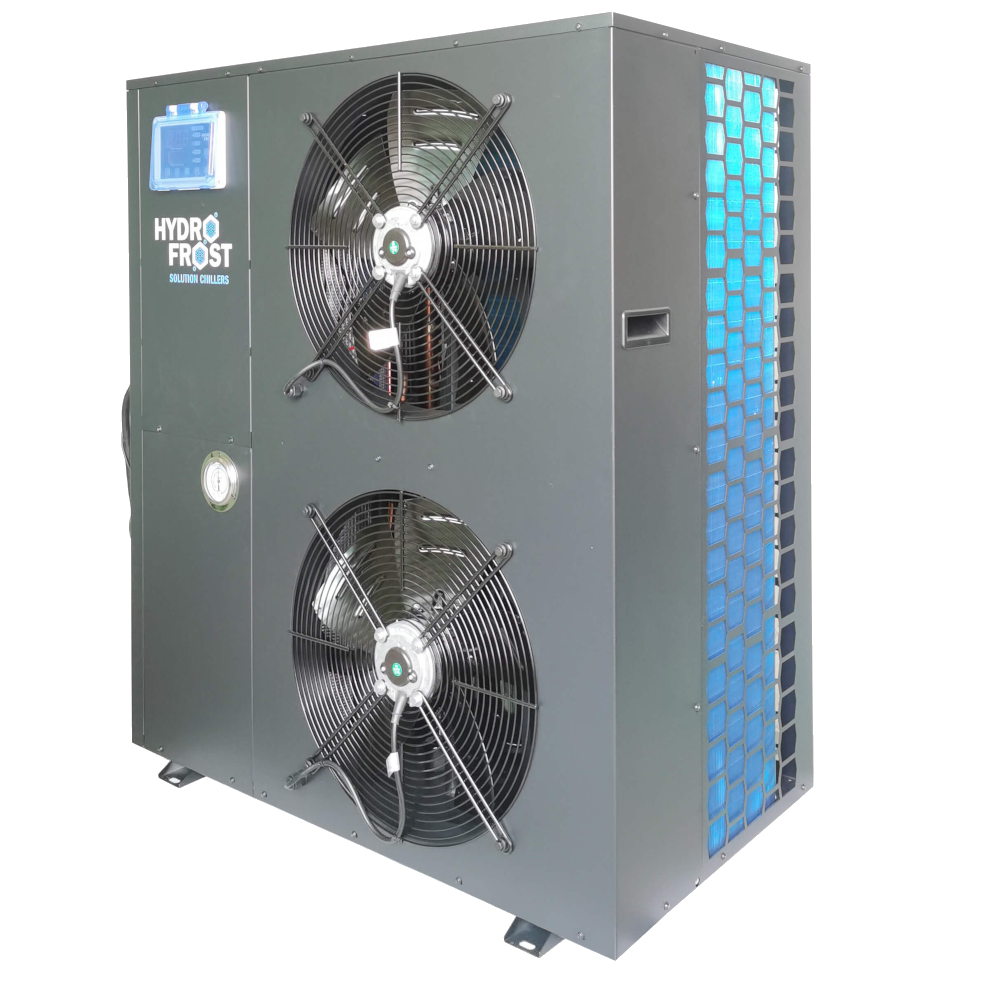

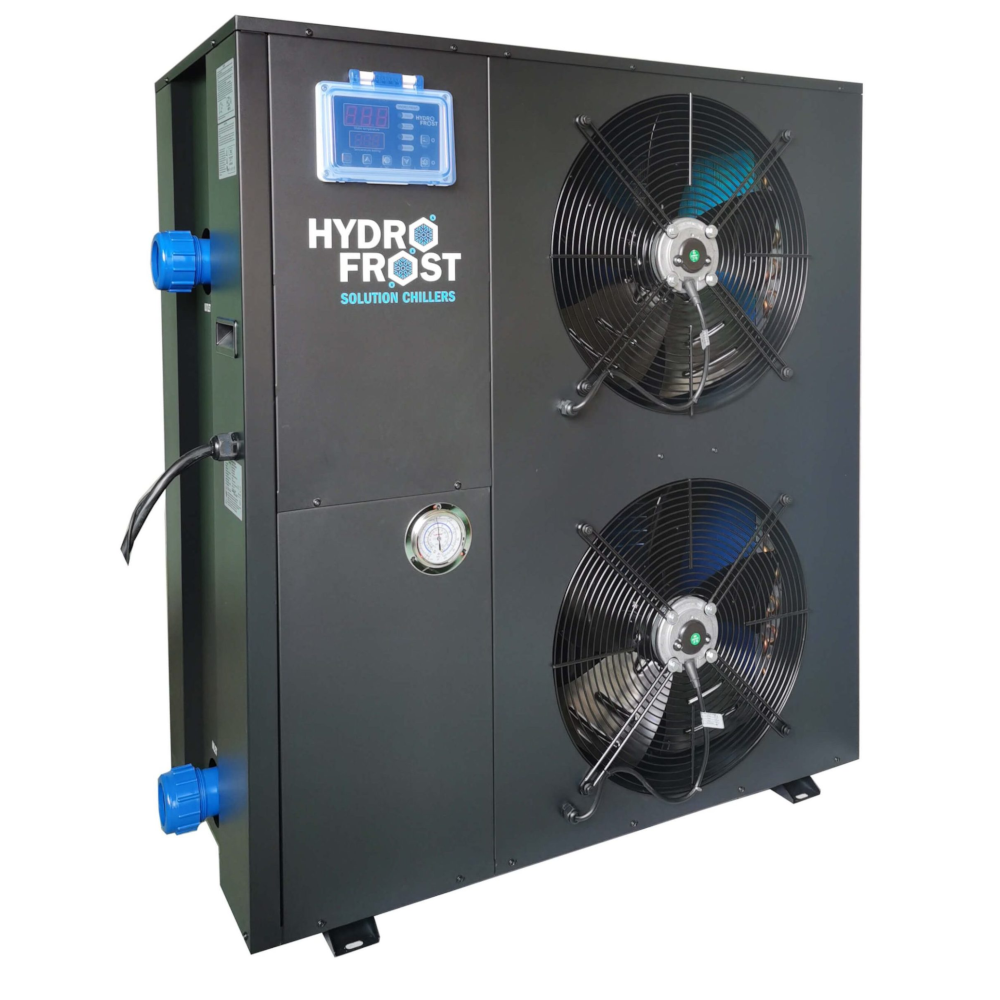

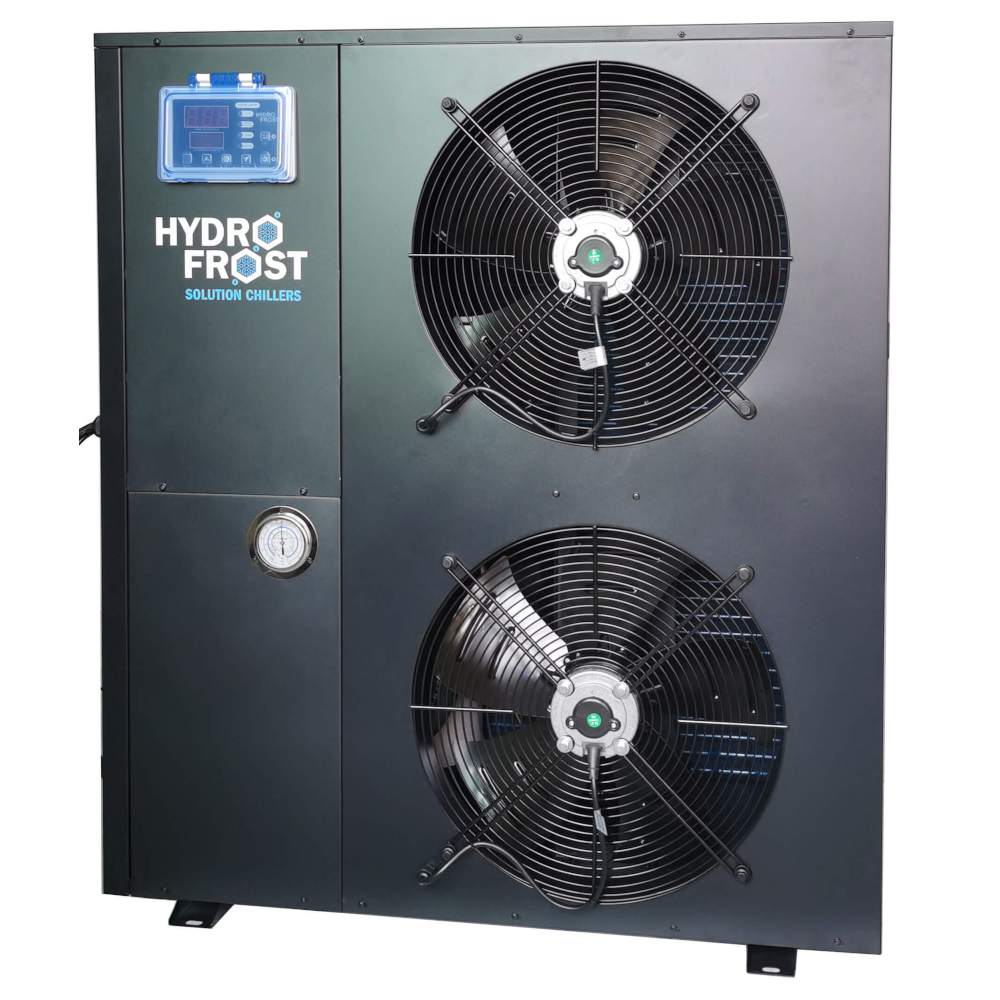

5HP - maximum tank size 1000 gal (3785 Lt) - cooling capacity 17,400 W (59,300 BTU/HR) - 208-230V / 60Hz / 3 Phase - rated power 3700 W - current 17.5A to 18.3A per phase - R410A - recommended flow over 1717 Gal/H - inlet and outlet 2 in. (50 mm) - 36 x 20 x 41 in. - 275 lbs (125 kg)

Key Features

High-performance rotary compressor
Titanium coaxial heat exchanger for high performance at low energy consumption
All components designed for oxidation protection, suitable for nutrient solution or salt water
Engineered for a high coefficient of performance (COP) to reduce running cost
Real-time water temperature control with accurate temperature readings
Digital controller with power-off memory, so settings survive an outage
High air volume, low noise design
Maximum operating pressure 25 PSI on all models
5HP adds intelligent microcomputer control for integration with industrial automation and SCADA via Modbus RTU over RS485
One year warranty against defects in materials and workmanship; compressor and consumable parts such as copper pipe are excluded

Installation Requirements

Install in a well-ventilated, dry, covered area on a firm, level surface
Maintain minimum 12 in. clearance around the unit and keep the exhaust area clear within 5 feet
Must be used with a circulation pump and an in-line filter ahead of the chiller inlet
Loop order: reservoir, filter, pump, chiller inlet, chiller outlet, back to reservoir
Pump head must be installed within 24 ft of the chiller
Use Schedule 40 or 80 PVC or equivalent wall thickness to prevent inlet warping
Allow the unit to stand level and upright for at least 4 hours after delivery before start up
5HP requires a three-phase, four-wire leakage protection switch (not supplied); a three-wire switch will trip
Power supply must be correctly grounded on all models

Ideal Applications

Recirculating deep water culture and deep water culture reservoirs
High pressure aeroponic and fertigation loops
Central nutrient tanks in controlled-environment agriculture
Commercial cold plunge pools
Fresh and salt water aquariums
Process water loops requiring stable temperature control

HYDRO FROST - Commercial Water Chiller

Brand: HYDRO FROST
