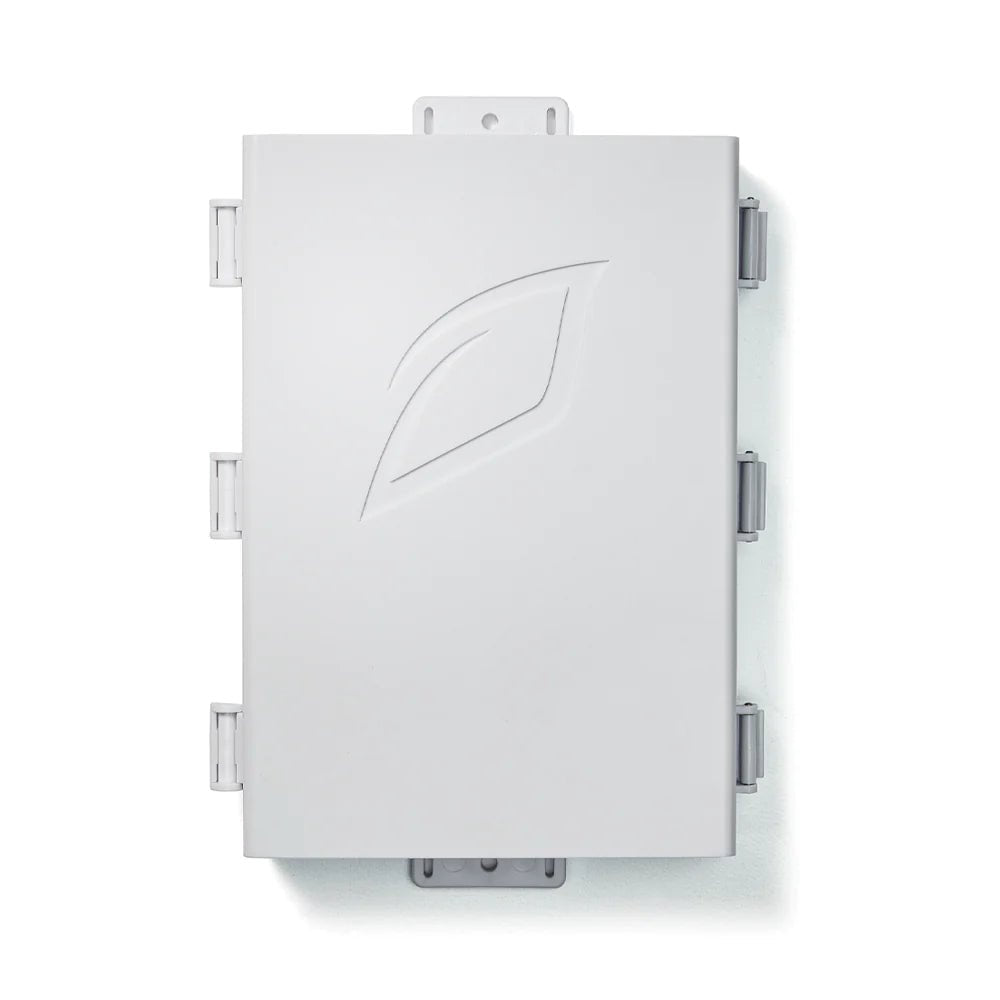

Growlink Batch Tank Module

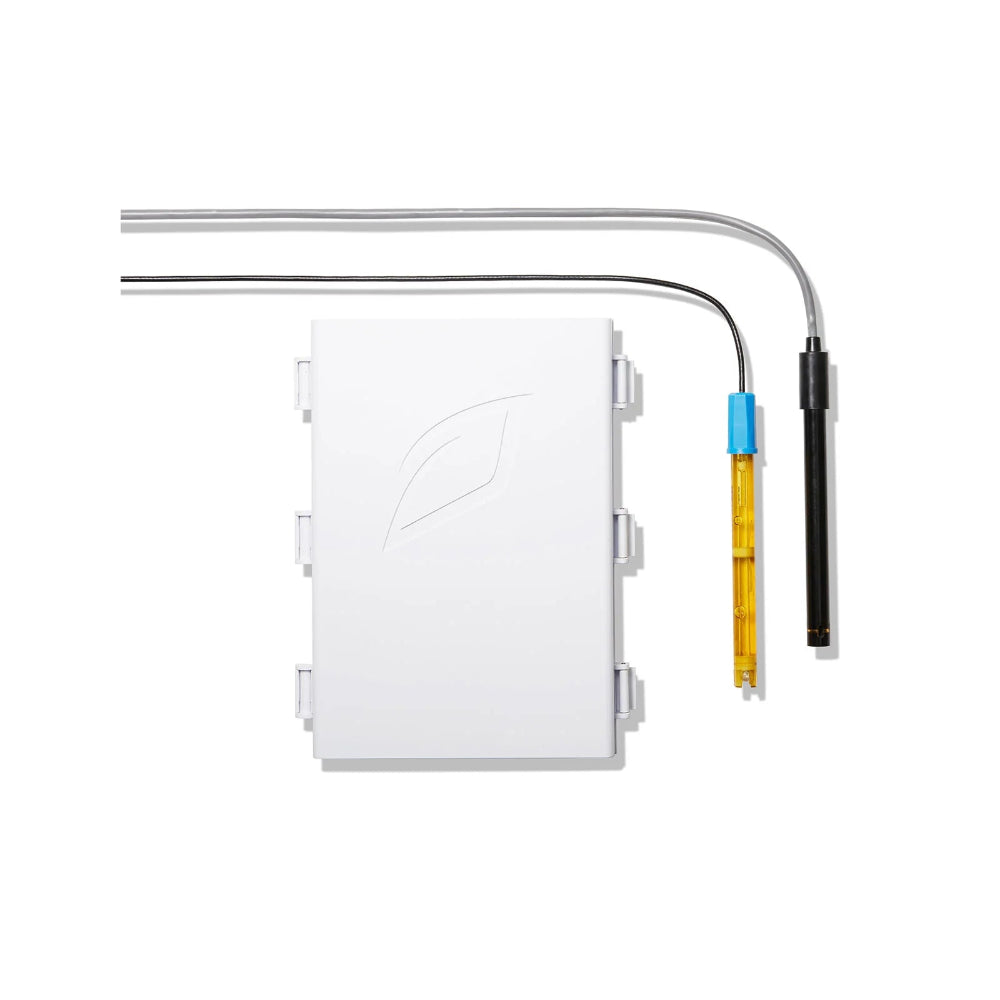

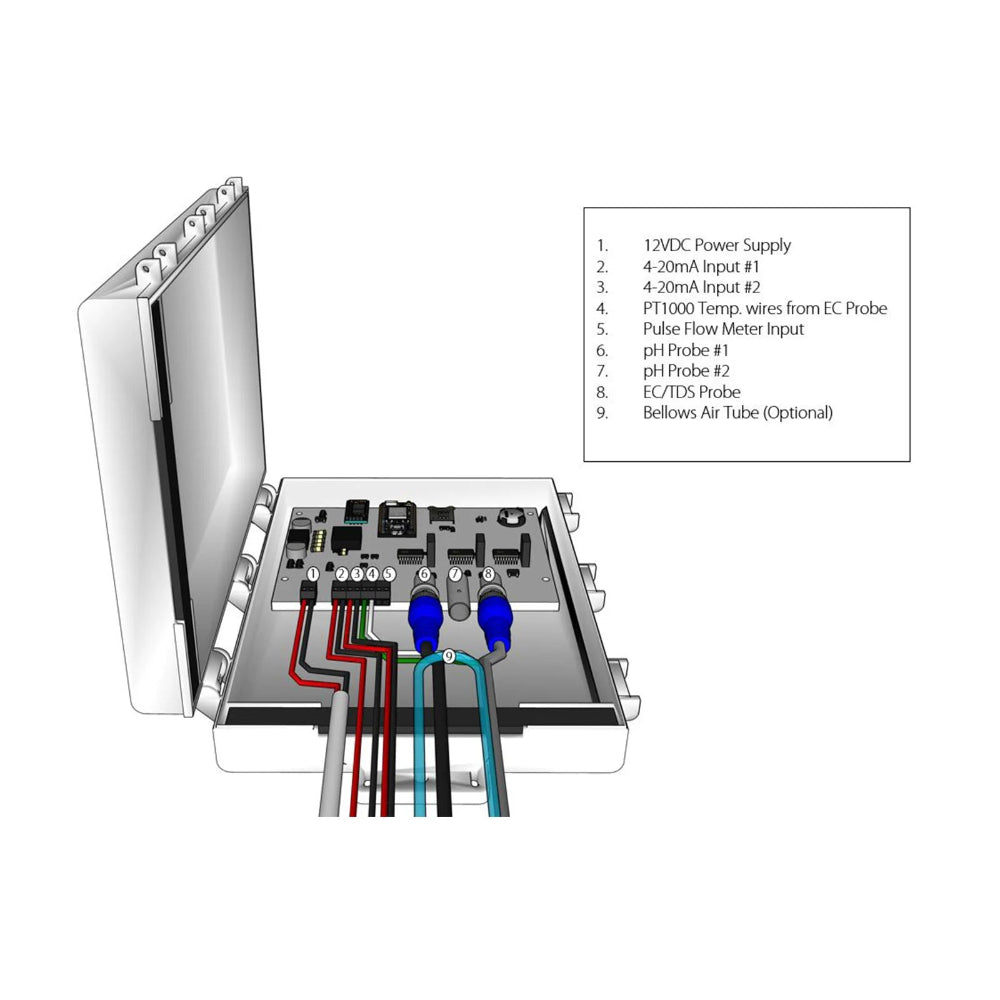

Introducing the Smart Batch Tank/Runoff Monitor, the ultimate solution for remote management and monitoring of your batch tanks or runoff zones. Equipped with Sensorex EC and pH probes, as well as inputs for level sensors, flow meters, temperature, pH, and EC, this powerful controller allows for accurate measurement and recording of pH and EC readings throughout the growth cycle.

Easy Calibration via the Growlink App
Plug & Play
Remote Access
Notifications and Alerts

pH6000 - Process pH Sensor
Measurement Range: 0-14 pH (low NA+ ion error)
Response Time: 95% in 1 second
Isopotential: 7.00 pH
Offset: 0.2%
Span: > 97%
Connector: BNC
Cable Length: 10 feet (3 meters)
Warranty: One year limited warranty
Diameter: 12mm
Length: 150mm
Reference: Sealed
Junction Number: Double (2)
Junction Material: Pellon
Reference Solution: 3.5 M KCl/AgCl/KNO3 (gel)
Glass Shape: Bulb
Body Material: Ultem
Temperature Range: 0-80° C
Strain Relief: No
BNC Boot: Yes
Bulb Protection: Teeth

EC Sensor
Cell Constant: choose from k=0.1 or k=1.0 (+/- 10%)
Graphite: Graphite
Temperature Range: 0-70⁰ C
Pressure Range: 0 – 100 PSIG
Body Construction: Epoxy
Cable Length: 10 ft
