Fisher American 8′ Wide x 4′ Deep Walk-In Fume Hood

SKU: NLS-841

$40,594.50
Options Available:
Quantity:

 Fisher American 8′ Wide x 4′ Deep Walk-In Fume Hood



 (Please Note:  2 weeks Lead Time)



Description

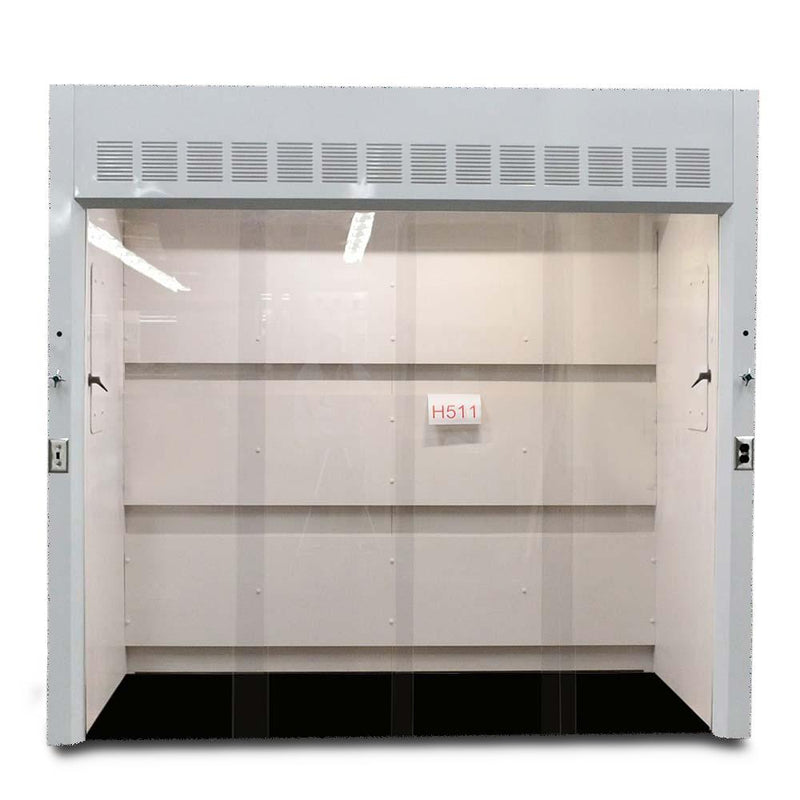

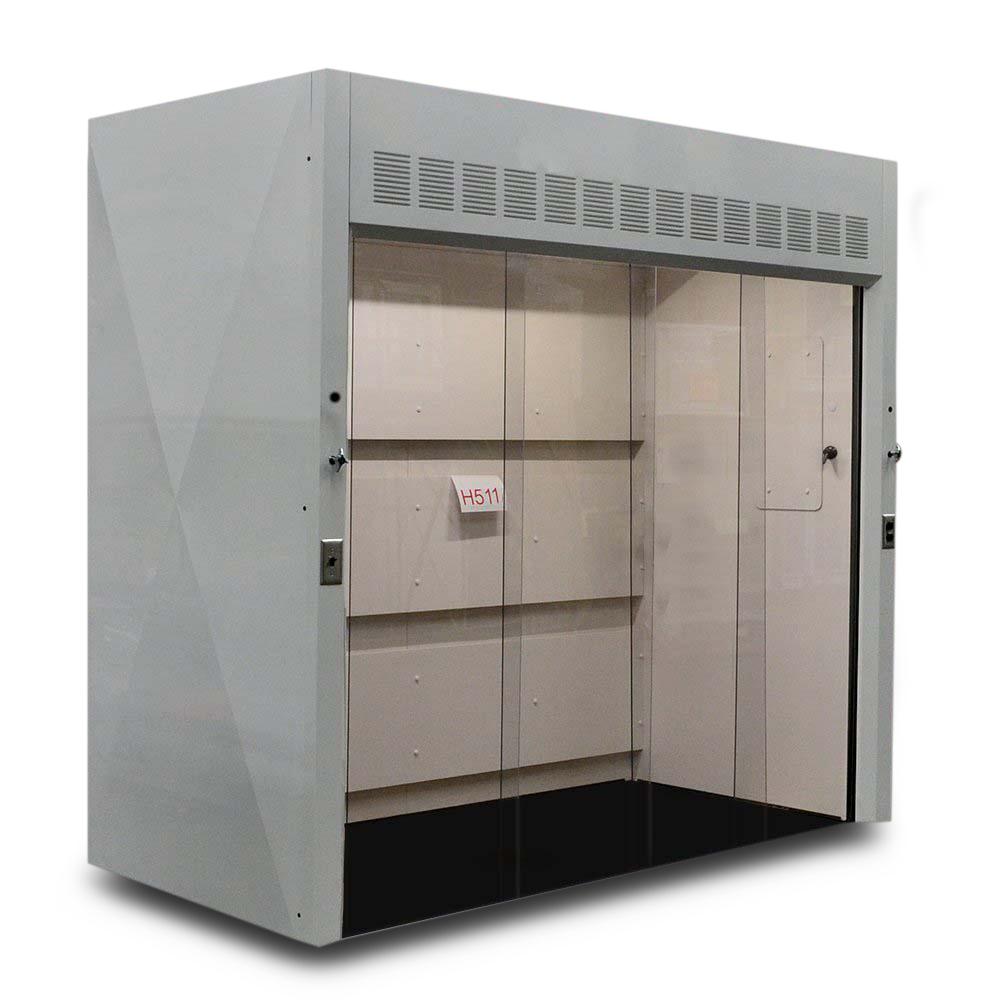

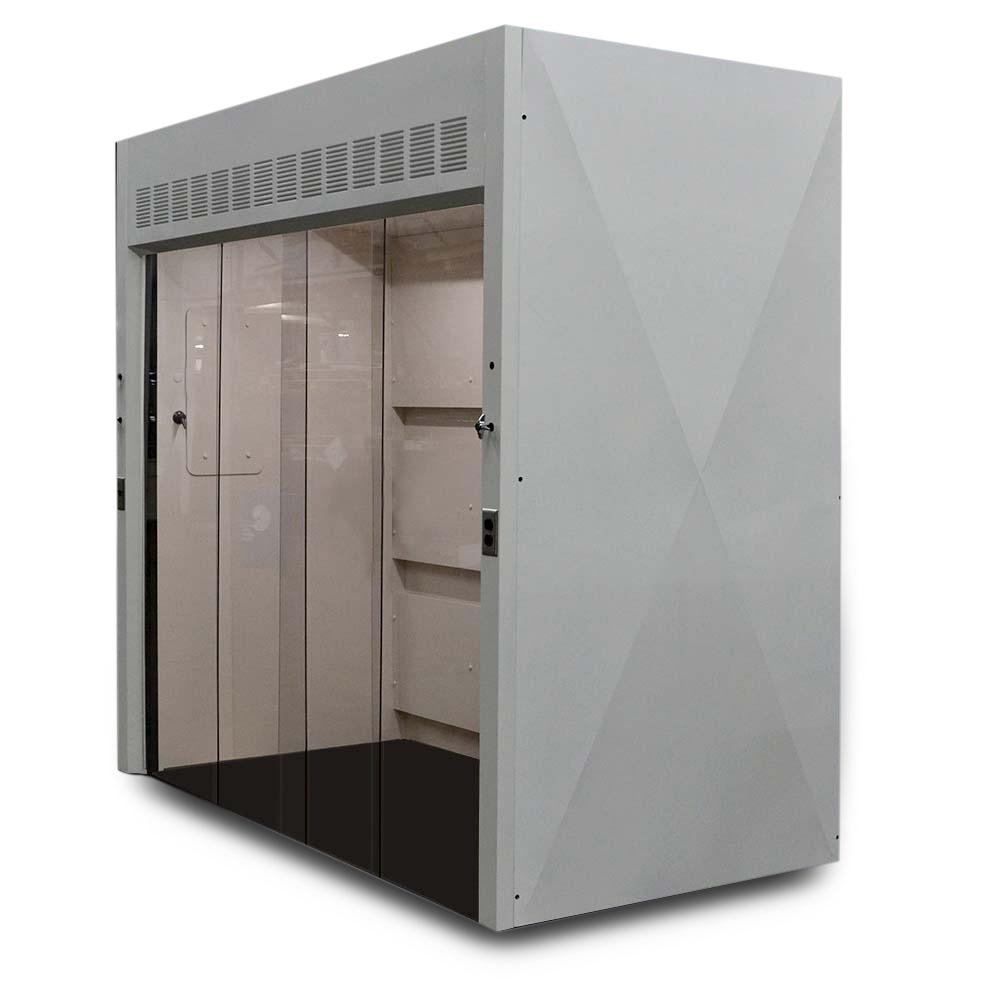

8′ x  48″ deep”Walk-In” Fisher American Chemical Laboratory Fume Hood  (NLS-H511)



  •  Unit does Not include blower
  • Add Blower, The blower is ¾ HP Hazardous Location blower C1D1



Fume Hood Exterior Dimensions:

Width: 96″

Depth: 48″

Height: 89″



Work Area (Interior) Dimensions:

Width: 86.5″

Depth: 39.5″

Height: 81″

Door Opening: 86.5″



Fume Hood Accessories:

1- Light on/off Switch

1 – LED Light

1 – AC Power Plug

1 – Gas Valve

1 – Cold water valve

4 – Sliding doors



 *Polyply Composites U.L. Listed ChemBlok CR-900 laminates are glass reinforced, UV inhibited composites sheet that offer excellent Chemical and flame resistance wherever a cost effective general-purpose corrosion material is required.



Typical Properties
General Information ASTM
Polyply Composites CR-900
U.L Recognition File Number E31703
Meets U.L. Standards 1805
Color (Standards) White
Sheet Size 48'' x 96'' length
Sheet Thinkness 3/16'' Other Sizes upon Request
Specific Gravity 1.8 D-792
Water Absorption (%by weight) 0.093 D-792
Flame Spread 20.2 UL 723/E-84
Smoke Generation, Tunnel Test 166 E-84
Flame Resistance Self Extinguishing
Tensile Strength, psi 8,300 D-638
Flexural Strength,psi 20,400 D-790
Compressive Strength 29,200 D-695
IZOD Impact Strength 8.1 D-256
Barcol 50







REAGENT RESISTANCE - PANEL CR900 LOT 07-1087,88
No. Reagent Rating No. Reagent Rating
1 Amyl Acetate 0 26 Iodine, Tincture 2
2 Ethyl Acetate 0 27 Methyl Ethyl Ketone 1
3 Acetic Acid 98% 1 28 Methylene Chloride 2
4 Acetone 1 29 Mono Chlorobenzene 0
5 Acid Dichromate 5% 2 30 Naphthalene 0
6 Butyl Alcohol 0 31 Nitric Acid 20% 0
7 Ethyl Alcohol 0 32 Nitric Acid 30% 0
8 Methyl Alcohol 0 33 Nitric Acid 70% 2
9 Ammonium Hydroxide 28% 0 34 Phenol 90% 0
10 Benzene 1 35 Phosphoric Acid 85% 0
11 Carbon Tetrachloride 1 36 Silver Nitrate Saturated 0
12 Chloroform 1 37 Sodium Hydroxide 10% 0
13 Chromic Acid 60% 2 38 Sodium Hydroxide 30% 0
14 Cresol 1 39 Sodium Hydroxide 40% 0
15 Dichloroacetic Acid 1 40 Sodium Hydroxide, Flake 0
16 Dimethyl Formamide 1 41 Sodium Sulfide, Saturated 0
17 1,4-Dioxane 0 42 Sulfuric Acid 33% 0
18 Ethyl Ether 0 43 Sulfuric Acid 77% 1
19 Formaldehyde 37% 0 44 Sulfuric Acid 96% 3
20 Formic Acid 90% 1 45 Sulfuric Acid 77% + Nitric Acid 70% (50/50) 2
21 Furfural 2 46 Toluene 0
22 Gasoline 0 47 Trichloroethylene 0
23 Hydrochloric Acid 37% 0 48 Xylenes 0
24 Hydrochloric Acid 48% 3 49 Zinc Chloride, Saturated   0
25 Hydrogen Peroxide 3% 0







Unless otherwise indicated, all properties are based on tests performed on standard ASTM Test Samples and according to ASTM test methods

Values Shown are for test Samples Made from production materials and are believed to be typical. No warranty is expressed or implied.
