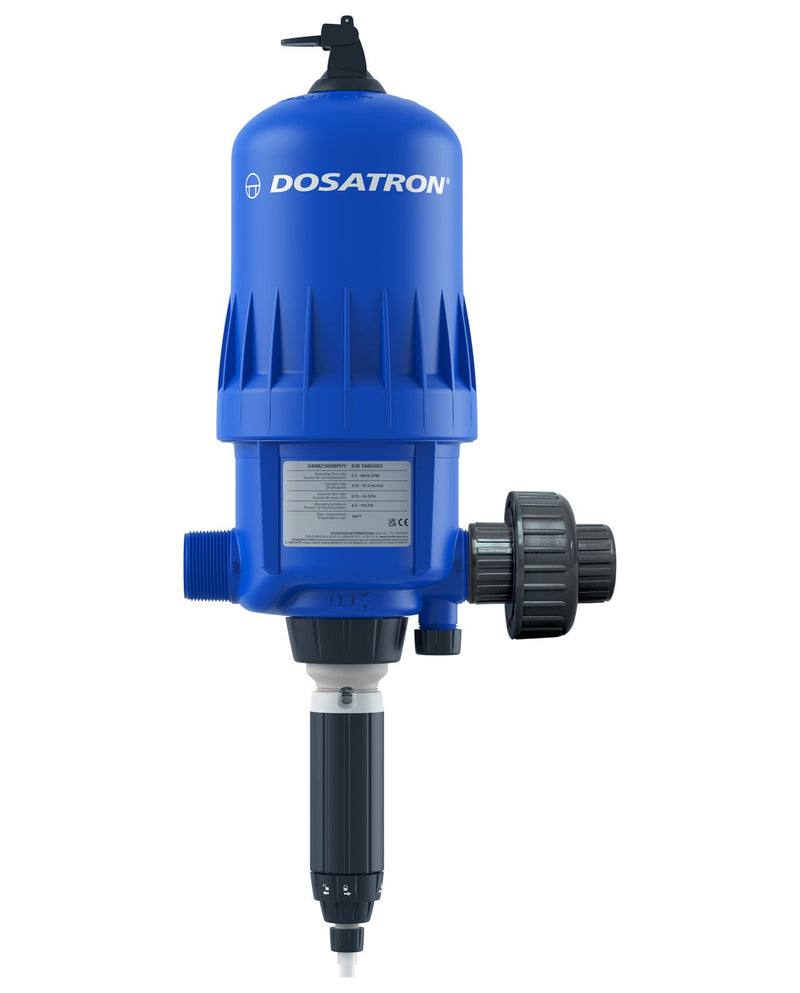

Dosatron Water Powered Doser - D40 Series - 40 GPM MAX INJECTOR 0.1% to 1% VF SEALS W/ 1 UNION HY scale

The Dosatron D40MZ1000BPVFHY is the ideal injector for the most common liquid fertilizer programs, offering higher flow rates and greater chemical compatibility than existing technology. Because the D40MZ1000BPVFHY can be adapted to new or existing Hi-Flo Nutrient Delivery Systems, installation is easier than ever. Simply swap out the injection stem and plunger assembly to achieve the extended dosing range.

• Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
• Water Flow Range: 2.2 to 40 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Available Housing Materials: Polypropylene
• Dimensions: 125 1/4” x 8 1/2”
• Weight: 12 lbs
• Connection Size: 1 1/2” NPT
• Maximum Temperature: 104°F

Included Accessories: 6’ clear suction tube, weighted strainer, mounting bracket and operating manual

Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor.
