Bullseye Precision Gauge with Bluetooth | Wireless Vacuum Gauge NPT, KF25

SKU: BPG-BT-531-KF25

$1,396.50
Options:
Quantity:

Bullseye Precision Gauge with Bluetooth | Wireless Vacuum Gauge NPT, KF25

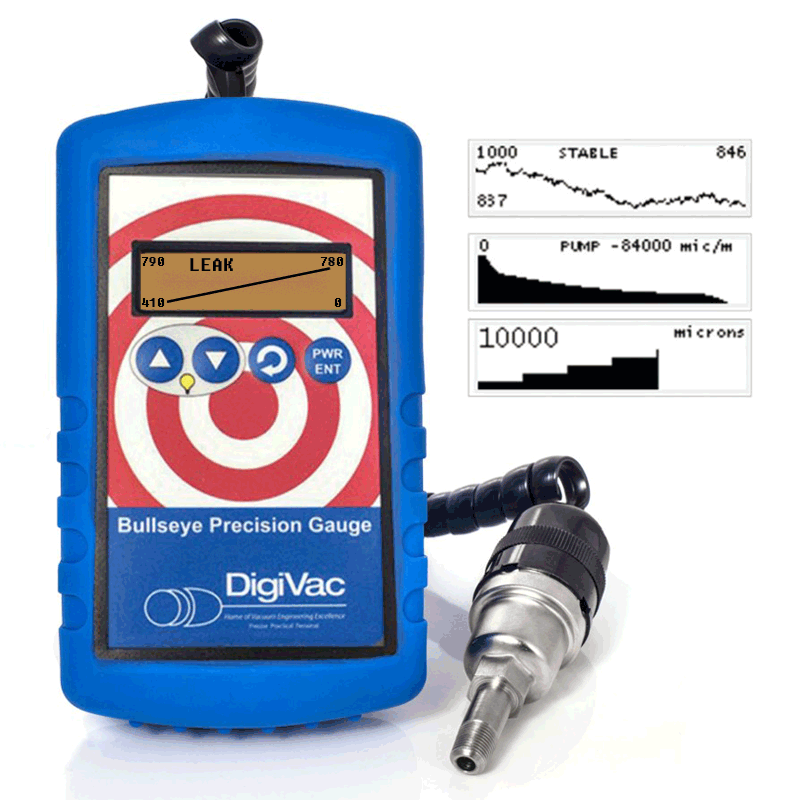

The DigiVac Bullseye Precision Gauge with Bluetooth is the world’s first wireless vacuum gauge featuring one-of-a-kind patented vacuum graphing and DigiVac’s ‘Vacuum Gauge’ app

  • Versatile wireless vacuum gauge that you can monitor right from your phone or tablet (Apple ios and android)
  • Enables remote monitoring and troubleshooting
  • Set low and high alarm from your phone
  • Email vacuum data to document leaks, baseline pressure or pump-downs
  • Use battery power or standard microB-USB power

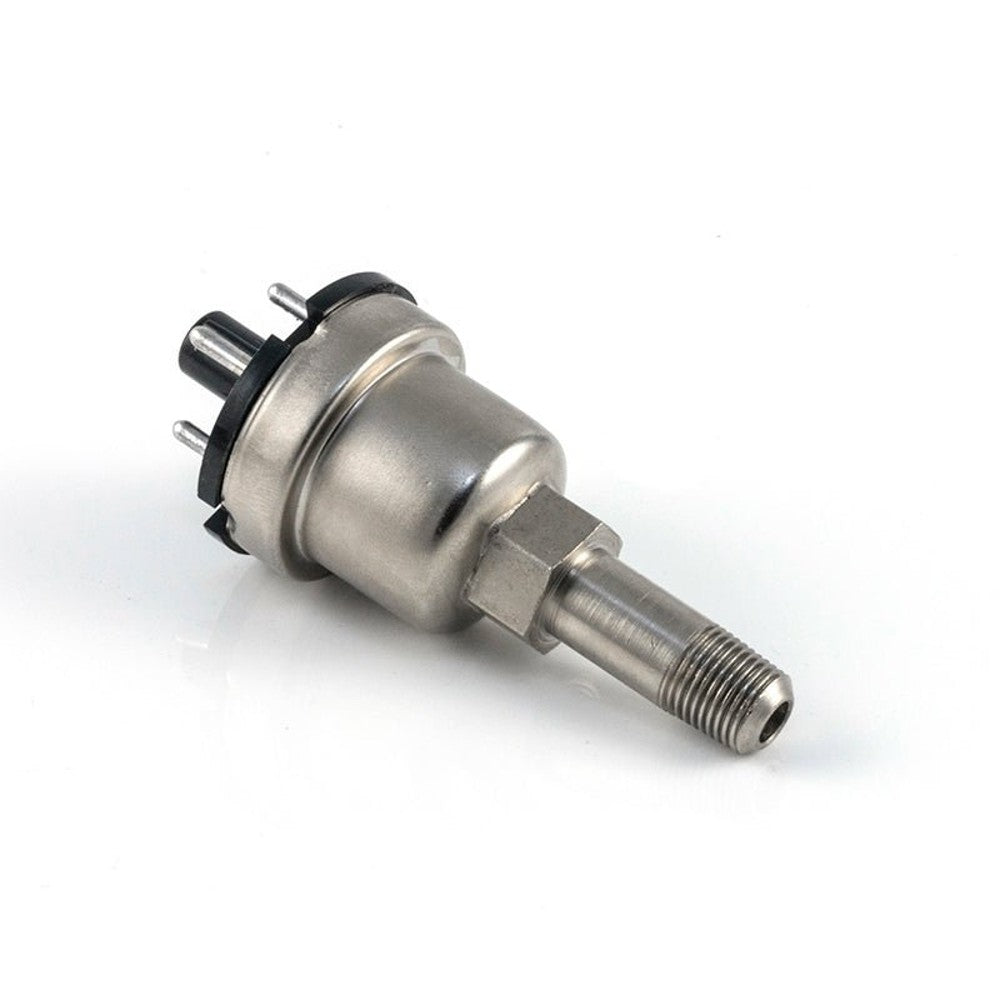

  • Choose standard Thermocouple Plus sensor or the Upgraded Agilent 531 NPT sensor (this sensor configuration is CE and RoHs compliant), or the Agilent 536 NPT sensor which includes an integrated baffle to extend the life of the sensor by helping to protect it from contamination

Portable and Precise

  • Rugged thermocouple vacuum gauge ideal for understanding: Leaks, Pump Downs, Out-gassing or Stable Systems
  • Includes a powerful magnet and kickstand to enable hands-free operation
  • Long battery life and versatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)
  • Calibrated under actual vacuum against a NIST standard.

Graphing and Analysis

  • Patented vacuum graphing displays vacuum and time data
  • Visual graphing right on the display that identifies current system status
  • Vacuum Analytics to quickly identify vacuum pressure trends
  • Graphical display for quick determination of vacuum level

Bluetooth Bullseye Gauge Applications

  • Vacuum pump testing
  • Baseline vacuum pump performance
  • Transformer dry-out
  • Schlenk line monitoring
  • Botanical oil processing
  • Distillations
  • Vacuum Process Monitoring

Technical Specifications

Units Torr, mbar, bar, kPa, inHg, mm Hg, millitorr, microns, inches of water, PSI, Pa
Control Range 1E-4 – 1000 Torr
Range with Accuracy .001-5 Torr
Sensor Type Agilent 531 (NPT), Agilent 536 (NPT, KF15, or KF16), VGT500
Dimensions 6.2”H x 3.7”W x 1.3”D
Certifications ROHS and CE
