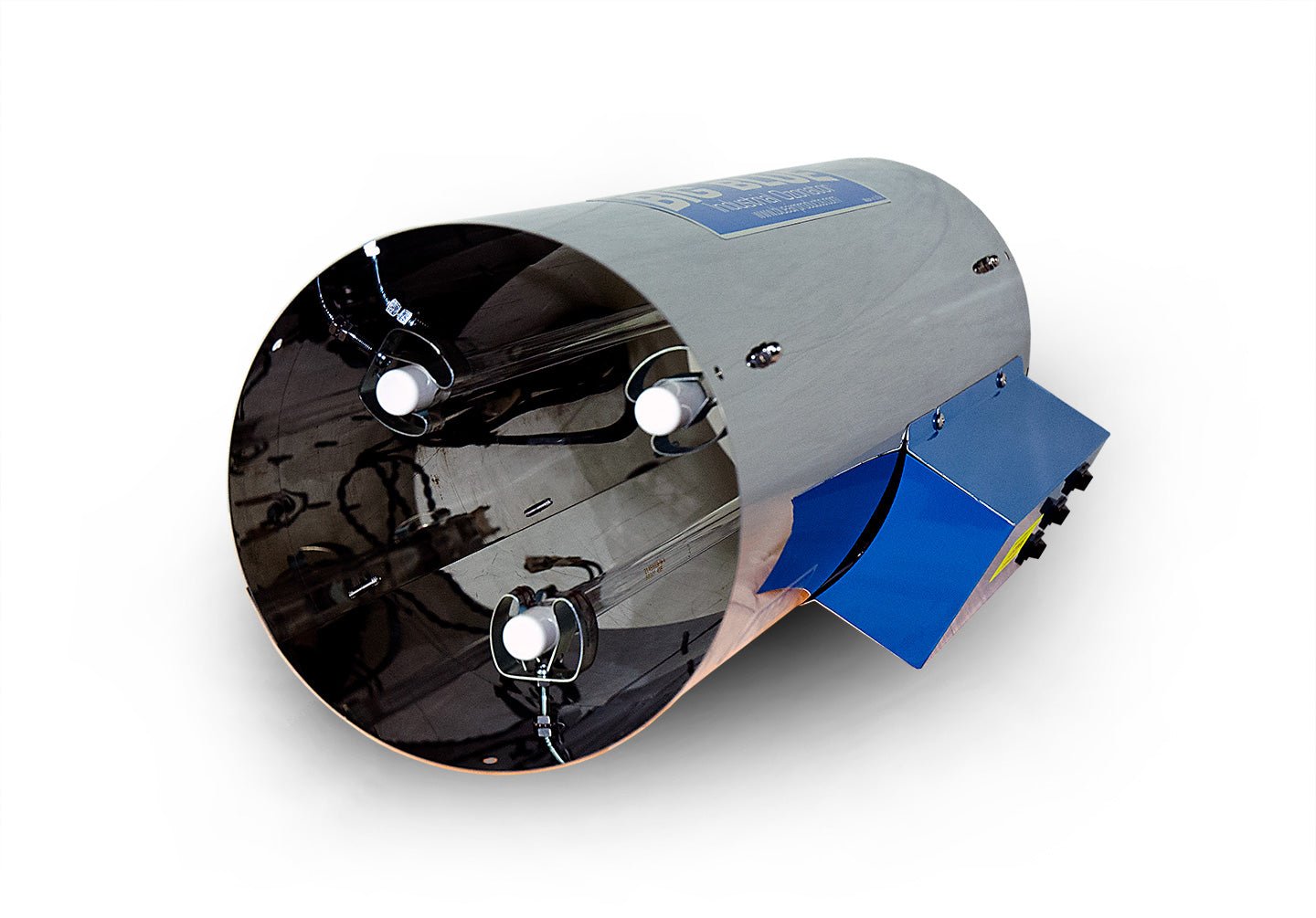

The 8″ BIG BLUE is our most popular model. This polished stainless steel ozonator contains 3 bulbs, each with their own high powered ballast. Each bulb is individually-controlled, allowing the user to adjust the ozone output. This redundant fail-safe feature means you are never without odor control. Great for larger spaces and faster results in smaller spaces. This unit measures 20″ long x 8″ in diameter. Recommended fan size of up to 800 cfm. The 8″ BIG BLUE produces up to 2250 mg/hr of ozone. This model will decontaminate a 30′ x 30′ x 10′ ft room in one hour.
The BIG BLUE UV ozone generator is an industrial unit, purpose-built to meet the unique demands of a greenhouse/grow room environment, and for decontaminating interior spaces.
The BIG BLUE has the largest UV bulb in its class. This equates to more ozone produced and more surface area for air to come in contact with the germicidal UV light. BIG BLUE generators are engineered to fit standard ducting from 4″ to 12″ (depending on the model).
BIG BLUE ozone generators can easily be attached to the intake or exhaust side of an in-line fan with duct clamps. An 8″ BIG BLUE will connect to an 8″ in-line fan, but if you wanted to use your 8″ BIG BLUE with a 6″ fan you would simply incorporate a duct reducer (in this case, an 8″ x 6″ reducer). BIG BLUE ozone generators work perfectly with all brand of in-line fans (Can-Fan, Hurricane, etc.).
The BIG BLUE UV ozone generator is an industrial unit, purpose-built to meet the unique demands of a greenhouse/grow room environment, and for decontaminating interior spaces.
The BIG BLUE has the largest UV bulb in its class. This equates to more ozone produced and more surface area for air to come in contact with the germicidal UV light. BIG BLUE generators are engineered to fit standard ducting from 4″ to 12″ (depending on the model).
BIG BLUE ozone generators can easily be attached to the intake or exhaust side of an in-line fan with duct clamps. An 8″ BIG BLUE will connect to an 8″ in-line fan, but if you wanted to use your 8″ BIG BLUE with a 6″ fan you would simply incorporate a duct reducer (in this case, an 8″ x 6″ reducer). BIG BLUE ozone generators work perfectly with all brand of in-line fans (Can-Fan, Hurricane, etc.).
The 4″ BIG BLUE is designed for small spaces. The stainless steel housing measures 20″ long x 4″ diameter. It contains a single proprietary UV-C germicidal bulb which produces over 750 mg/hr of ozone. It is very energy efficient, using only 21 watts of power. This unit can accommodate up to a 465 cfm fan. It will decontaminate a 10′ x 10′ x 10′ room in only one hour.
The 6″ BIG BLUE is sized for larger rooms. Two individually-controlled ozone bulbs produce a total of 1500 mg of ozone per hour for twice the effectiveness of the popular 4″ model. It will handle any 6″ fan up to and beyond 600 cfm. The 6″ BIG BLUE will decontaminate a 20′ x 20′ x 10′ room in one hour.
The 8″ BIG BLUE is our most popular model. This polished stainless steel ozonator contains 3 bulbs, each with their own high powered ballast. Each bulb is individually-controlled, allowing the user to adjust the ozone output. This redundant fail-safe feature means you are never without odor control. Great for larger spaces and faster results in smaller spaces. This unit measures 20″ long x 8″ in diameter. Recommended fan size of up to 800 cfm. The 8″ BIG BLUE produces up to 2250 mg/hr of ozone. This model will decontaminate a 30′ x 30′ x 10′ room in one hour.
The 10″ BIG BLUE contains 4 bulbs with up to 4 different control settings. It can decontaminate up to 1500 sq ft. Recommended fan size of up to 1000 cfm. 3000 mg/hr. 20″ long x 10″ diameter. The 4 bulb 10″ BIG BLUE will decontaminate a 50′ x 30′ x 10′ room in one hour.
The 10″ BIG BLUE w/5x UV Bulbs contains 5 bulbs with up to 5 different control settings. Recommended fan size of up to 1200 cfm. 3,750 mg/hr. 20″ long x 10″ diameter. The 5 bulb BIG BLUE can decontaminate a room 50′ x 40′ x 10′ in one hour.
The 12″ BIG BLUE is designed for big, tough jobs. 5 individually controlled bulbs. Ozone output of nearly 4000 mg/hr. Accommodates up to a 1200 cfm fan. The 5 bulb BIG BLUE can decontaminate a room 50′ x 40′ x 10′ in one hour.
- All BIG BLUE units are designed to be used with an inline fan.
- The BIG BLUE can work vertically or horizontally – the orientation does not matter.
- For best performance we suggest blowing, rather than sucking air through the BIG BLUE.
- When using the BIG BLUE to “scrub” a room, most users find it easiest to mount the BIG BLUE on top of a carbon filter and fan. Plug the BIG BLUE to a simple timer, seal up the room, turn on your circulation fans (if you have them) and let it run overnight. The next morning make sure the BIG BLUE has been off for about an before you enter the room. If you smell ozone upon entering the room simply wait a little bit longer. If you have an exhaust fan setup in the room you can turn that on to reduce the wait time.
- Hanging eyelets are included (all models except 4″) to allow you to hang the BIG BLUE. The stainless steel housing can be easily drilled if more mounts are needed for your application.
- The BIG BLUE can be used to negate the odors coming out of your exhaust ducting. After connecting the BIG BLUE to your duct run, set all switches to the “ON” position. Selectively turn the switches “OFF” until the odor is negated by the ozone. You don’t want to be creating too much ozone, just enough to negate the smell, so dial everything down accordingly. If you can smell a little bit of ozone at your exhaust point that’s fine, just make sure you’re exhausting into an area where people are not coming into contact with it (typically outside or into an attic).
Additional features:
- All BIG BLUES are assembled with corrosion-resistant stainless steel.
- BIG BLUES use a proprietary germicidal far UV-C lamp that produces the most effective odor killing and antimicrobial ozone that ultraviolet technology has to offer.
- UV lamps continue to produce ozone for up to 14 to 18 months of continuous use. After that, the light is on, but ozone levels are below optimal. Bulb replacement is easily accomplished by anyone who can change a light bulb! Simply remove the lamp from its mounting clips and separate the bulb from its socket. Reverse the order for the installation of a new bulb. No need to return the BIG BLUE to the manufacturer for bulb replacement. The bulb can be recycled at any facility that will take fluorescent bulbs.
