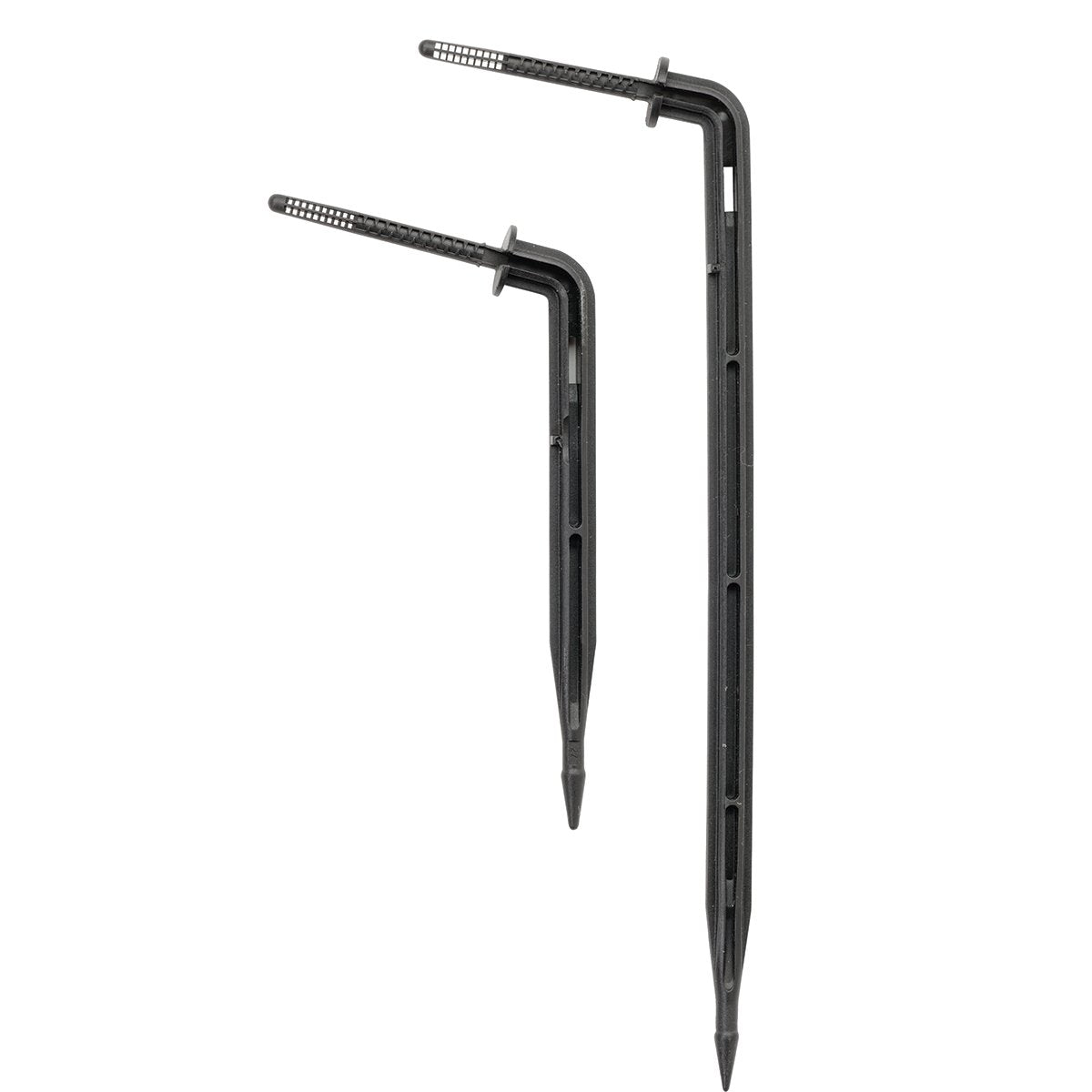

Angle Arrow Dripper

Netafim Arrow Drippers

A dripper with drop leading stake for grow bags, pot and container irrigation, in greenhouses, nurseries and garden pot irrigation.

Benefits

• Flexibility- Allows placement of drippers exactly where necessary. Allows maximum flexibility in greenhouse and nurseries (with soft PE micro-tubes).
• Versatility- Allows the installation of other Netafim drippers to add compensated and anti-drain functionality. Accessory to all on line drippers for better and more accurate installation.Adaptable to all PC on line drippers via barb, manifold, or adapter.

Specifications

• Working pressure up to 2.0 bar.
• Recommended filtration: 130 micron / 120 mesh. Filtration method selected based on the kind and concentration of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone shall be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pretreatment shall be applied following Netafim expert instructions.
• Turbulent labyrinth with large water passage.
• Insertable into 3*5 mm micro-tube.
• Injected dripper, very low CV.
• 5 different models to meet growers’ requirements.
