BVV -80C Chiller - 220v/60hz

SKU: BVV-80C

$12,750.00
Configuration:
Quantity:

BVV -80C Chiller - 220v/60hz

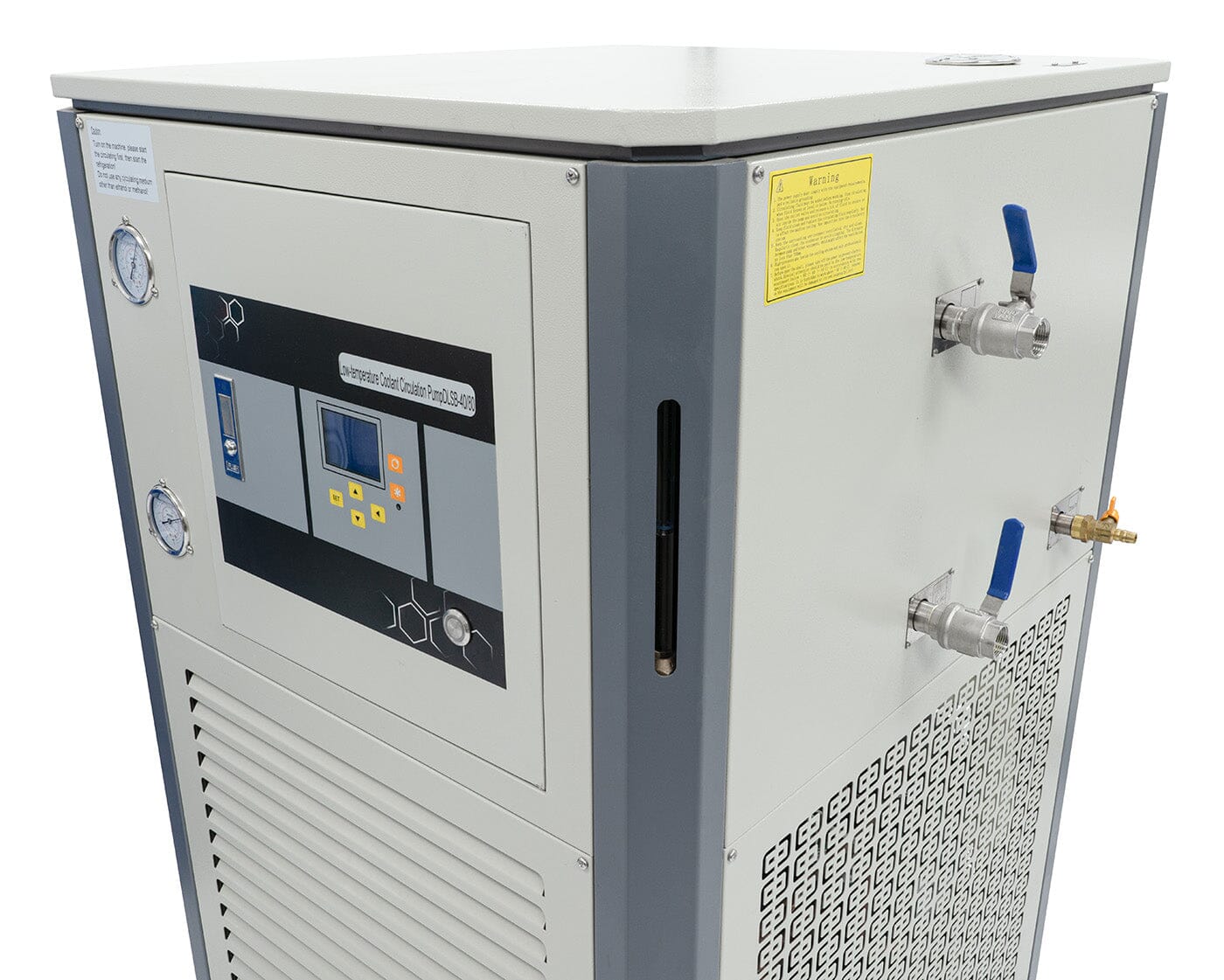

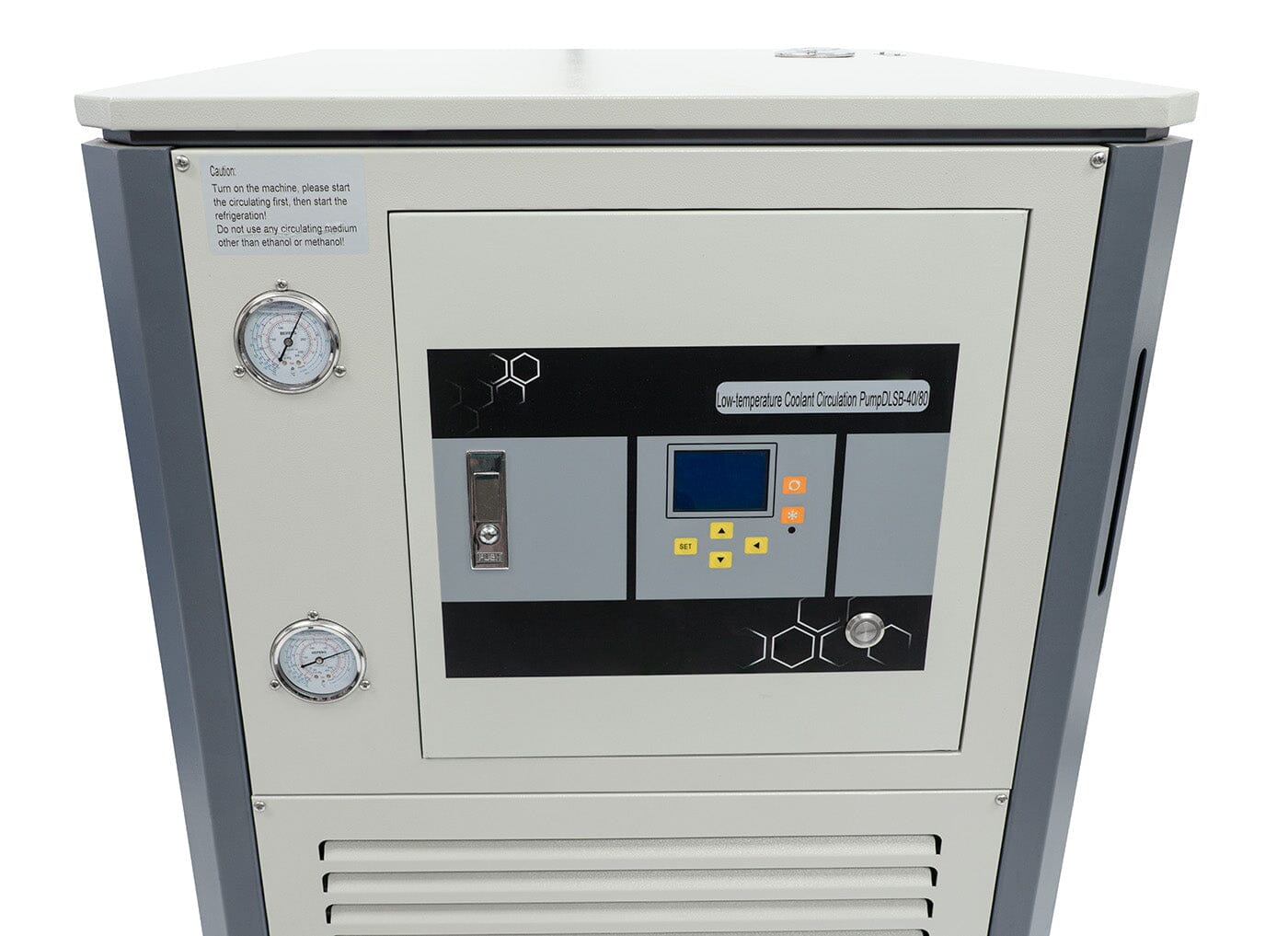

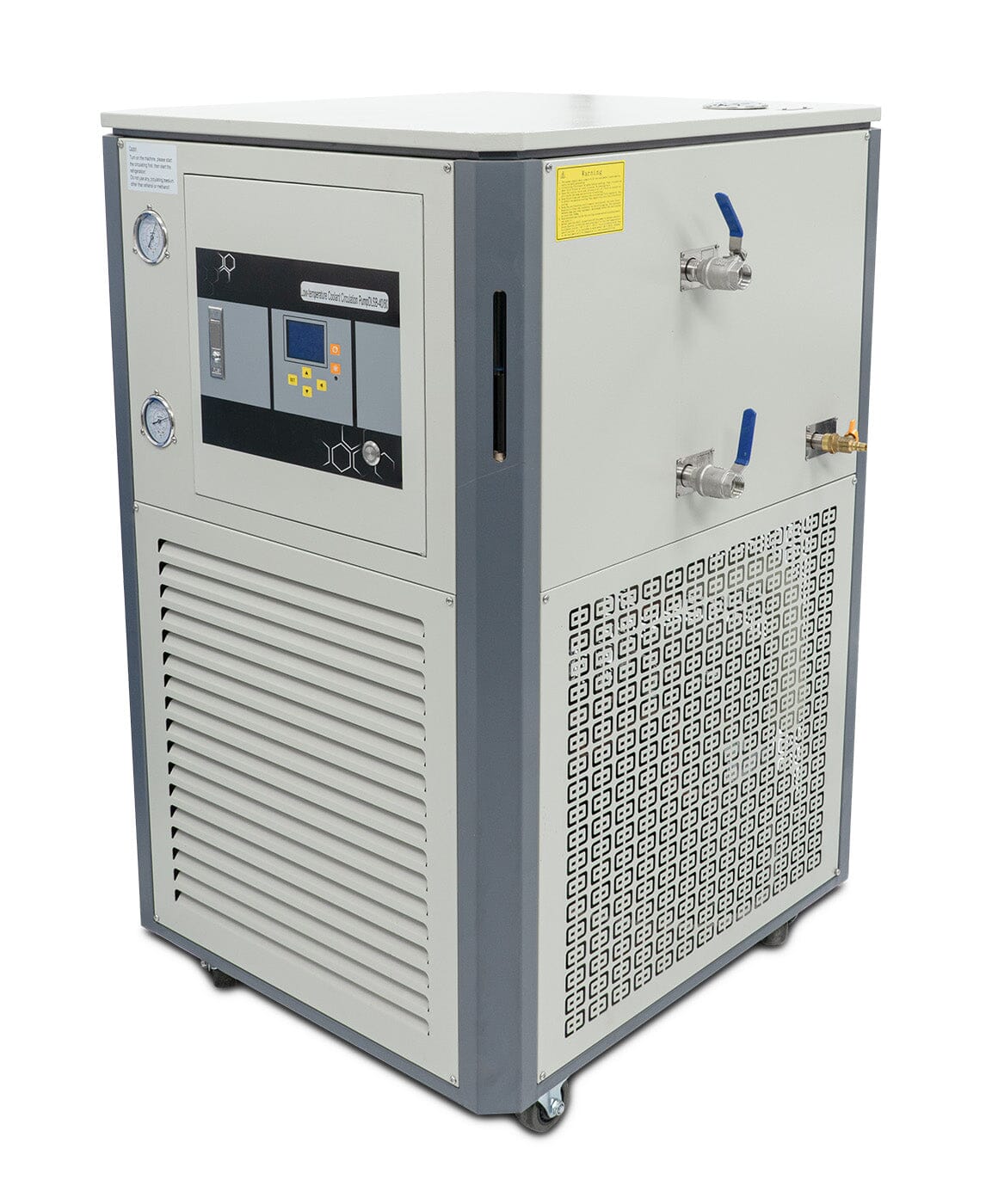

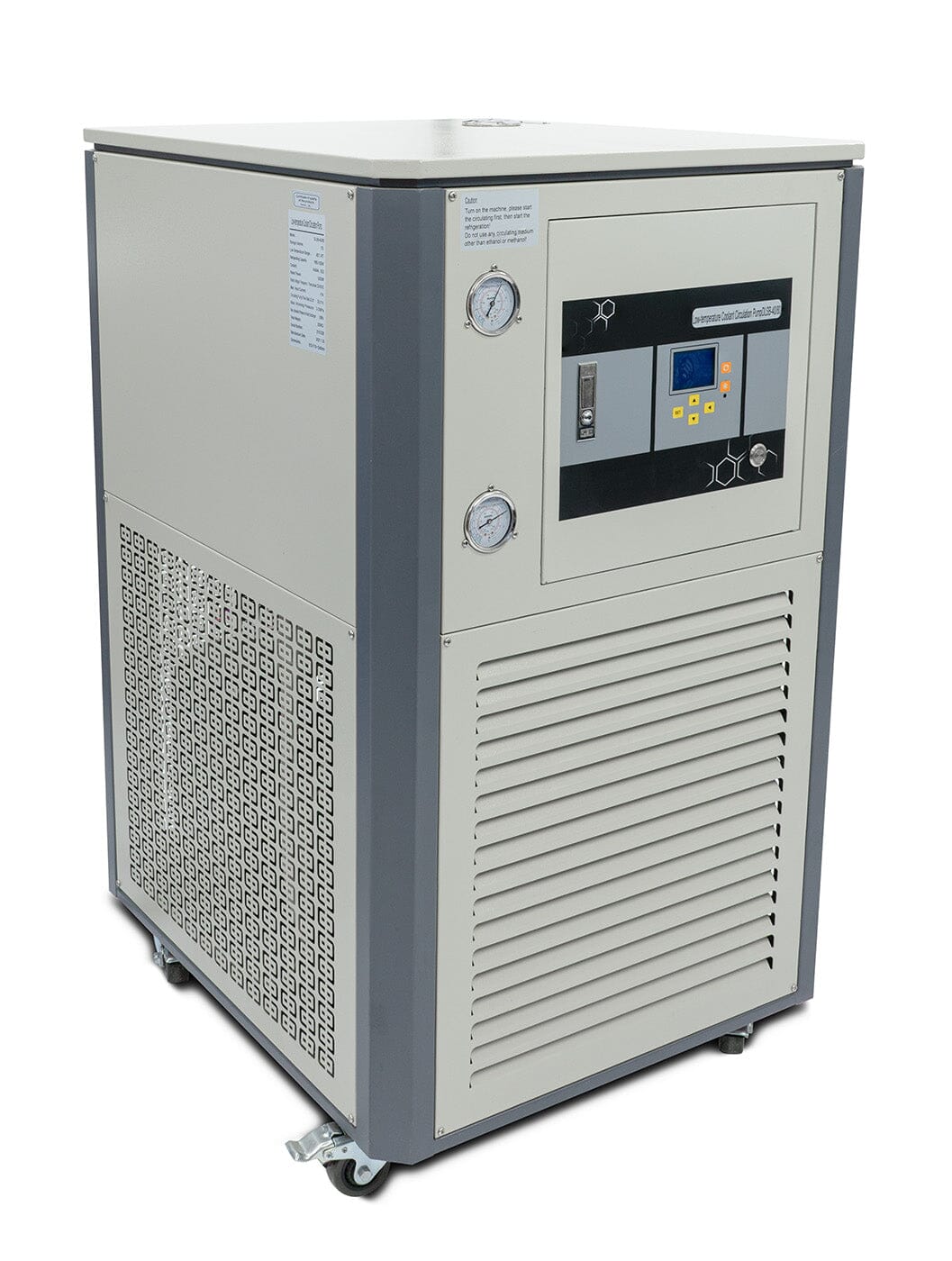

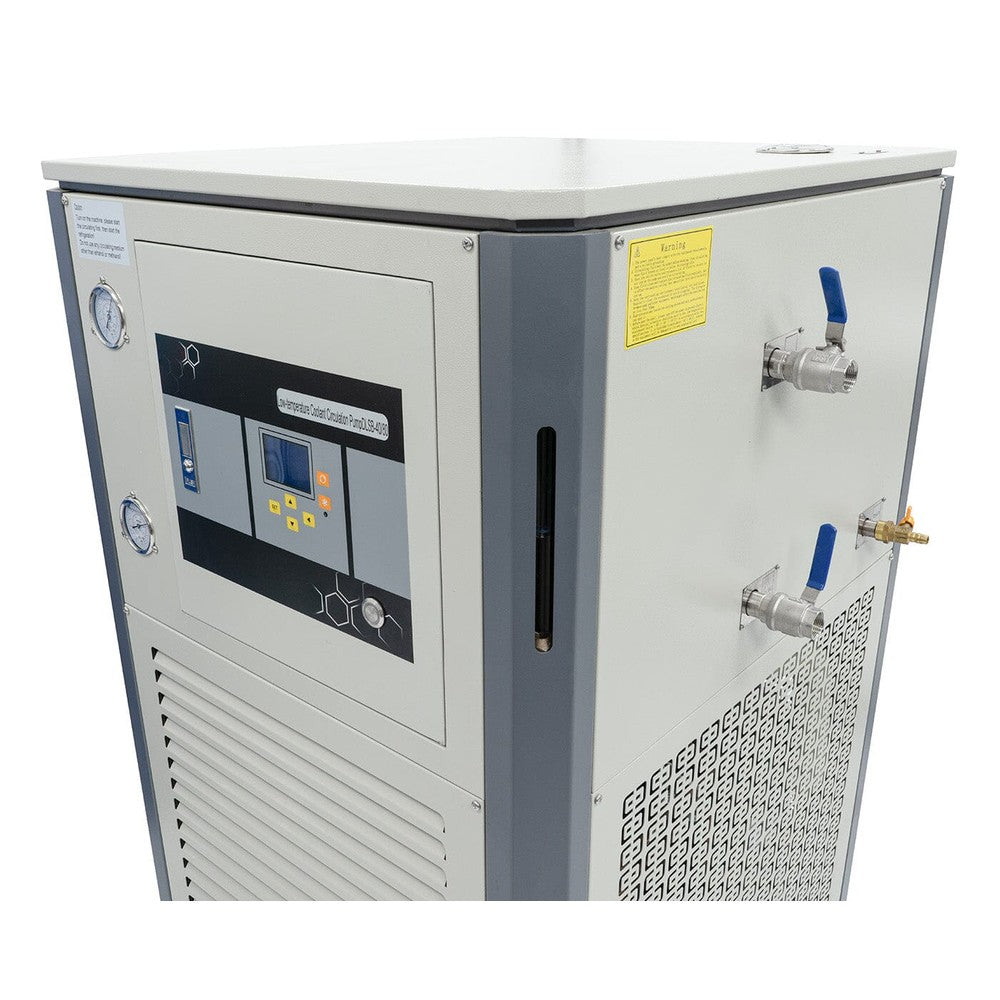

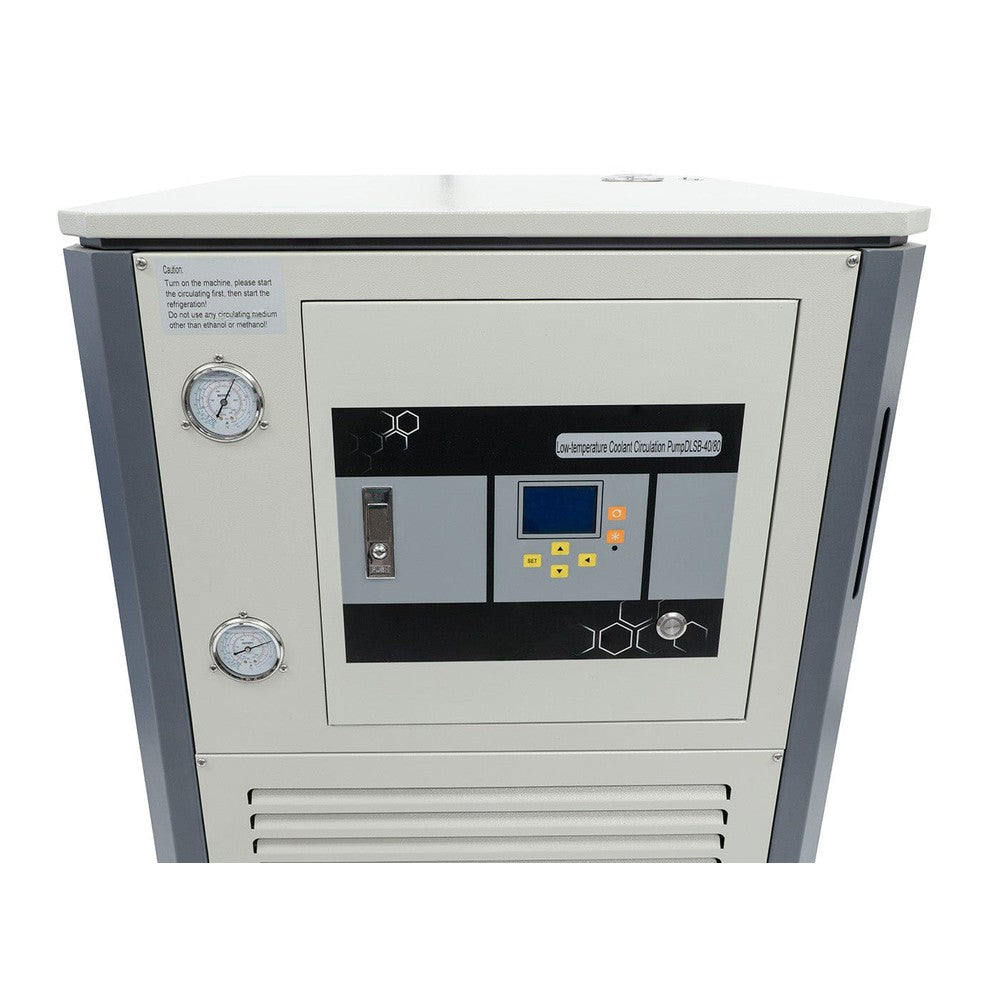

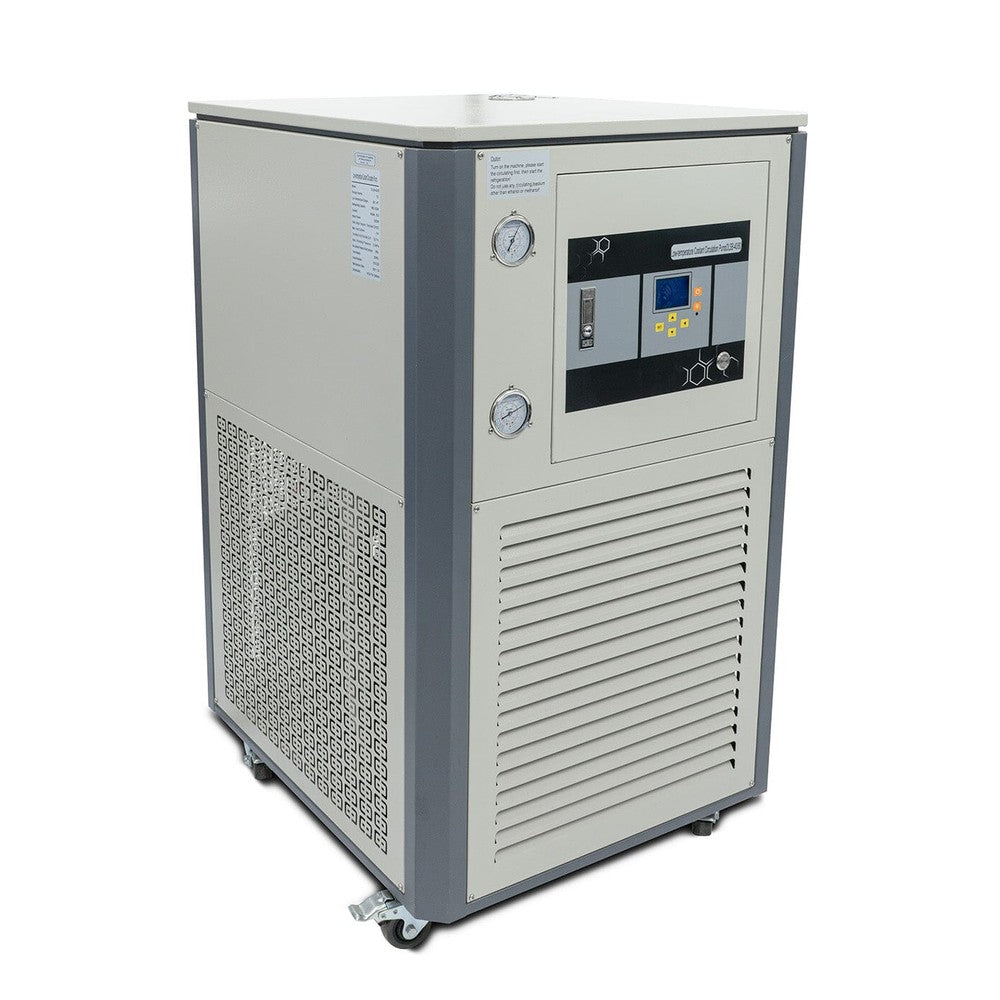

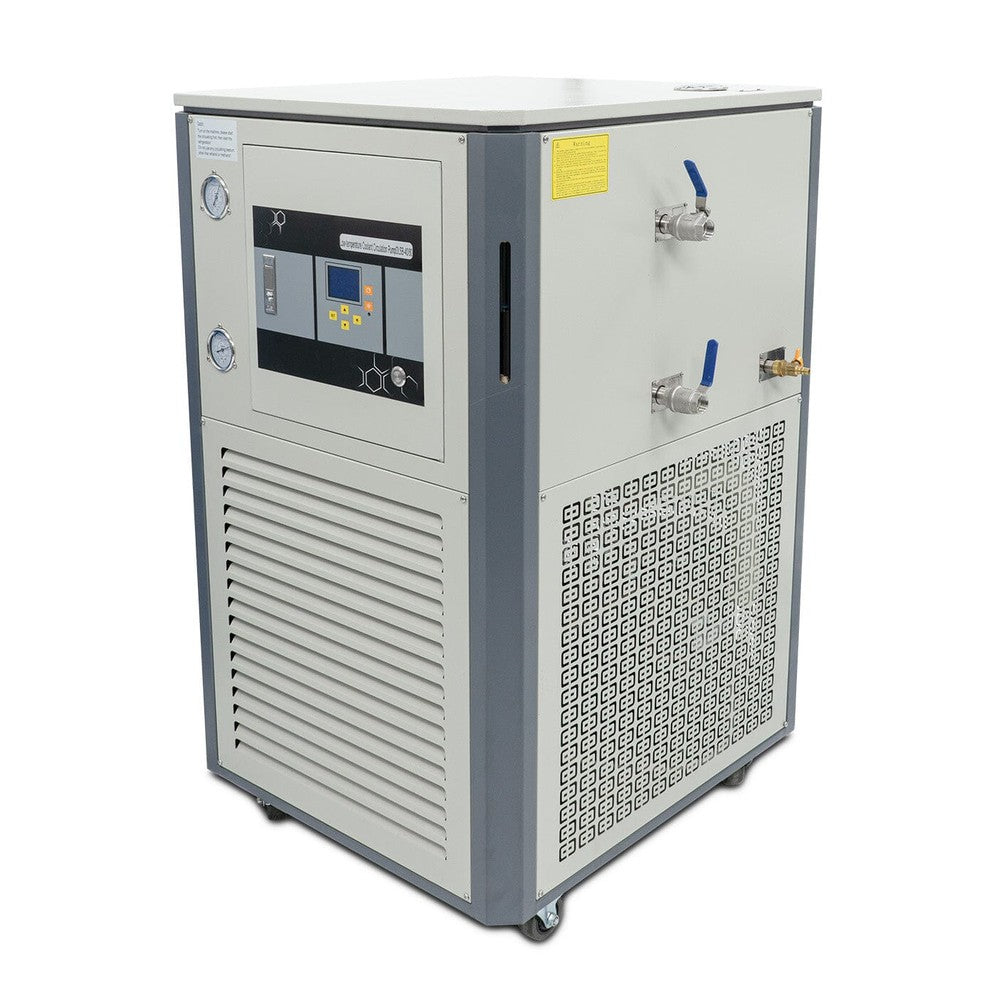

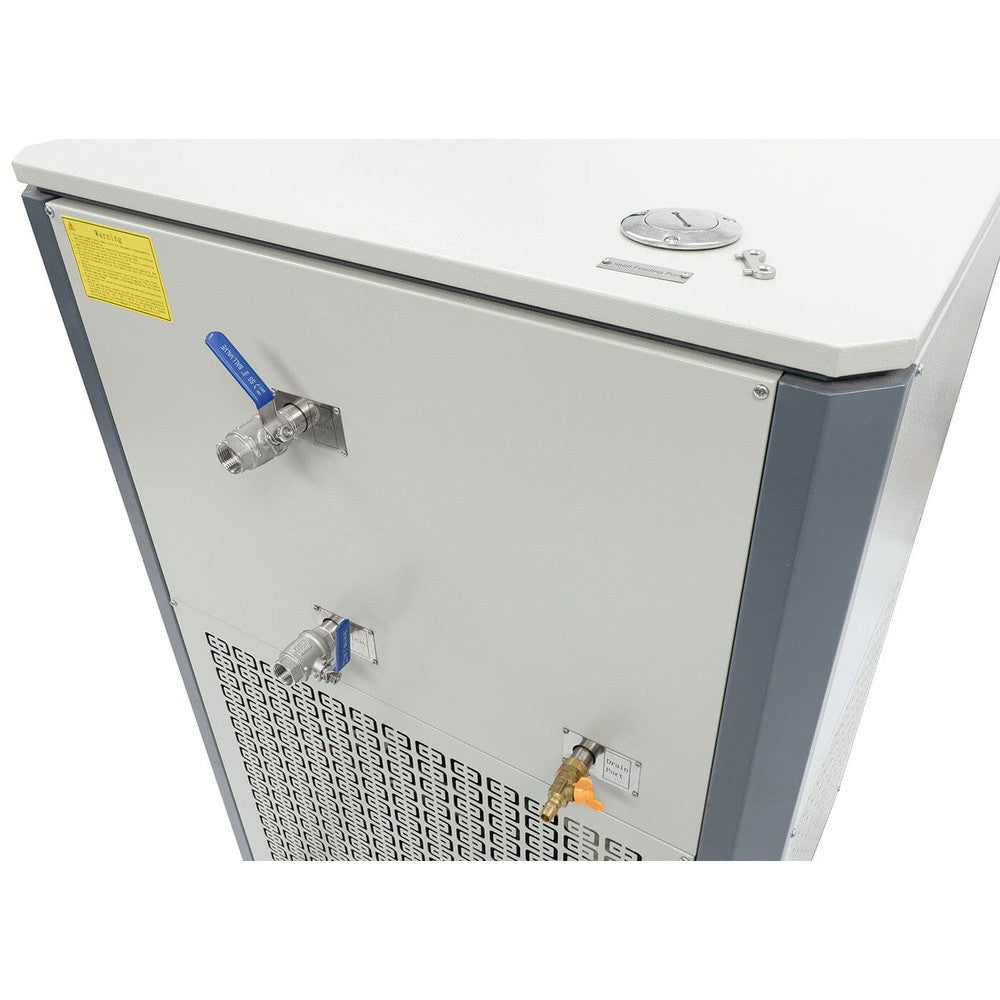

 This recirculating chiller is great for low temperature applications. With the a powerful pump it is able to circulate fluid while at -80°C. The chiller includes valves for the inlet and outlet port with 3/4" FNPT connections. The chiller also includes two barbs to adapt to 5/8" tubing, along with 2M of insulated silicone tubing.



Technical Data 3 Phase Single Phase
Reservoir: 10L 10L
Flow: 35L/min 35L/min
Lift: 12m 12m
Refrigerant: R404/R23 R404/R23
Low Temperature: -80℃ -80℃
Cooling capacity: 8048~1260W 7665~1200W
@30°C 8048W 7665W
@0°C 6021W 5735W
@-40°C 4326W 4120W
@-80°C 1260W 1200W
Max. Input Current: 17 amps 24 amps
Power supply: 220V/60Hz/3Φ 220V/60Hz/1Φ

Circulator

 Low-temperature Coolant
Circulation Pump		 Low-temperature Coolant
Circulation Pump
