150L 304SS Jacketed Collection and Storage Vessel with Locking Casters

150L 304SS Jacketed Collection and Storage Vessel with Locking Casters

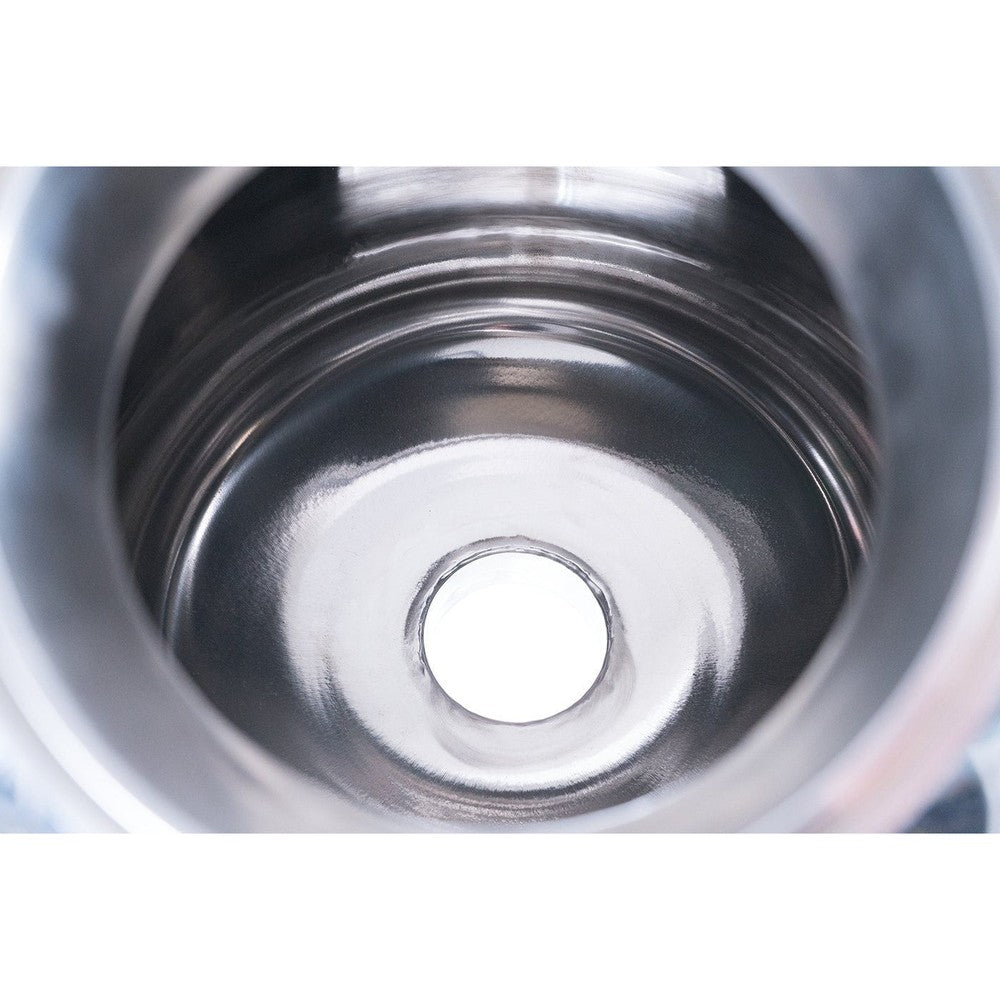

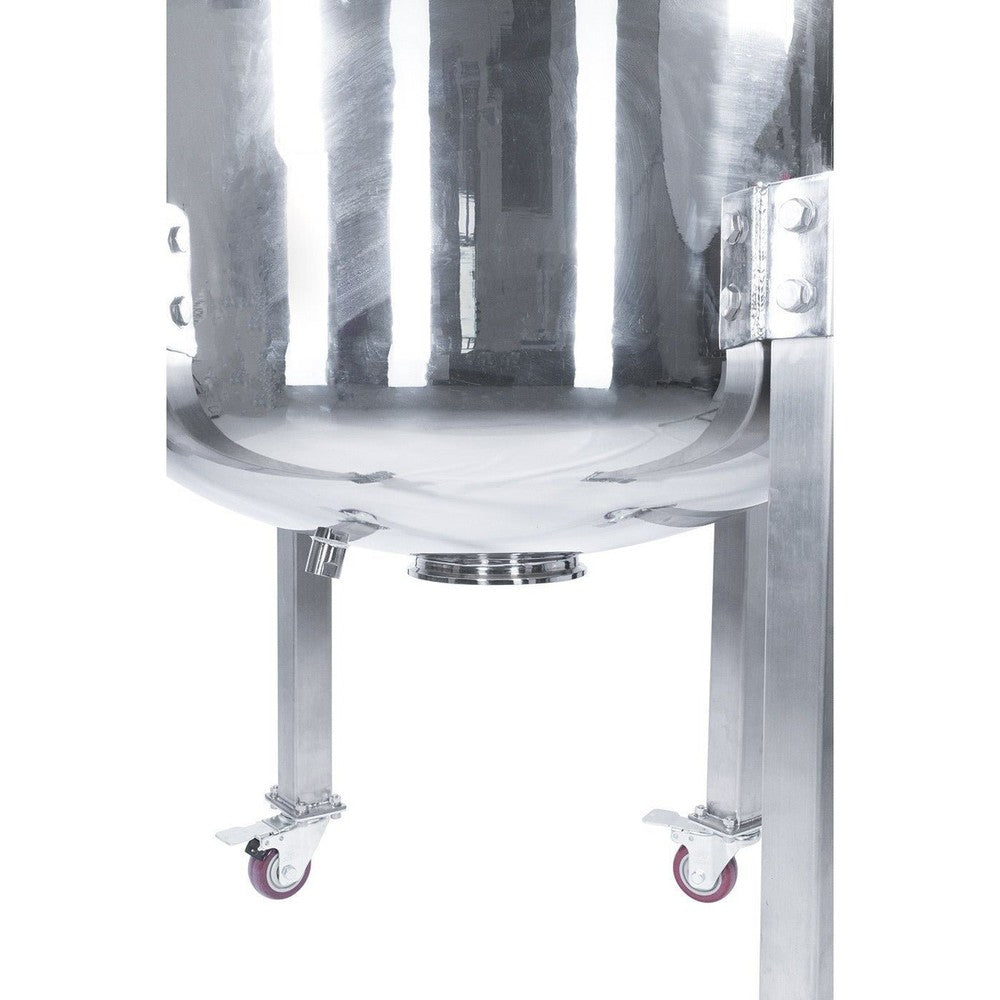

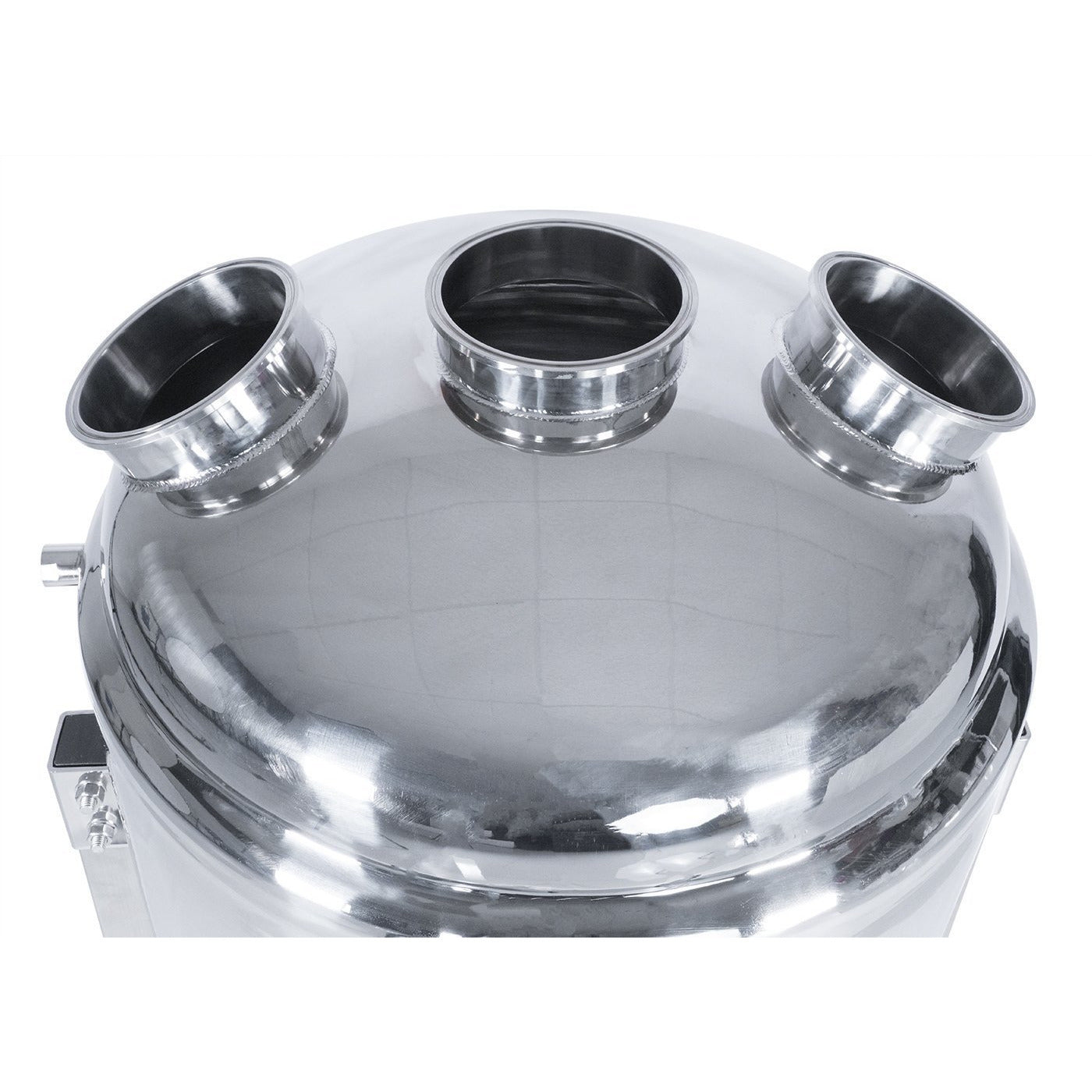

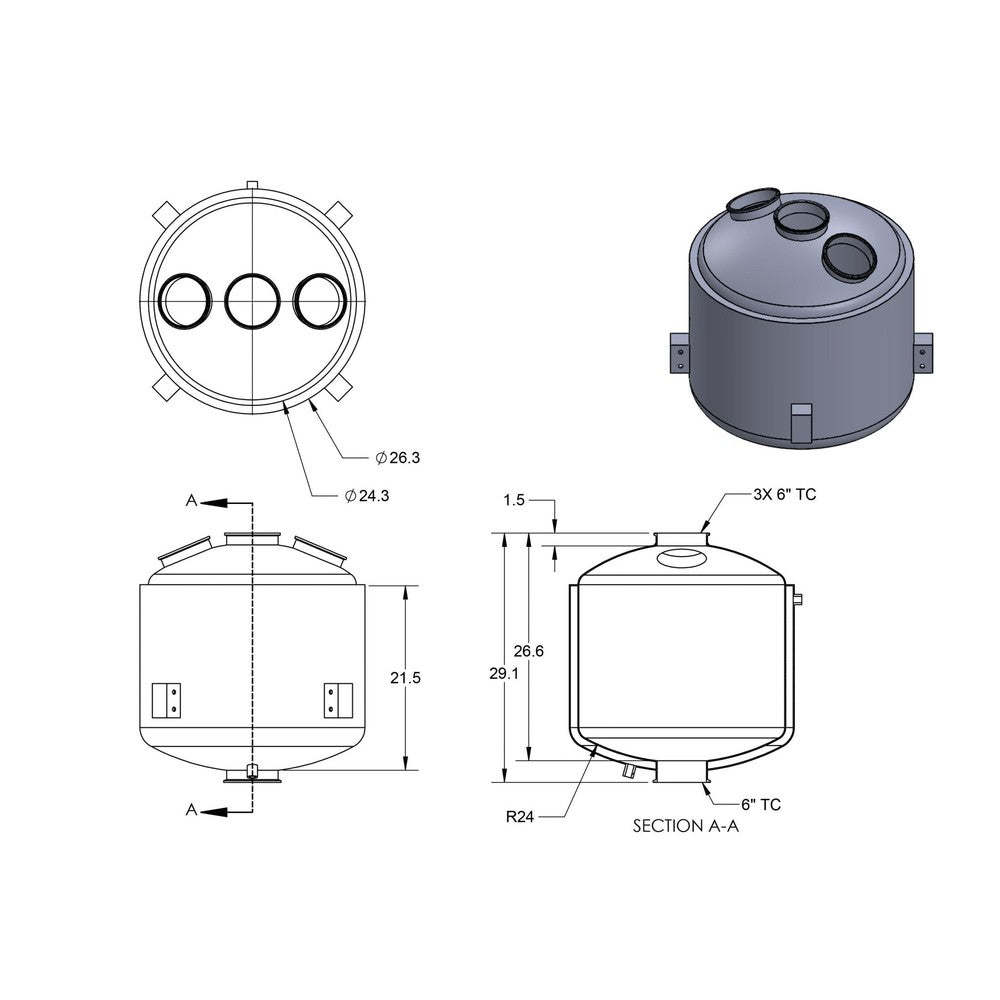

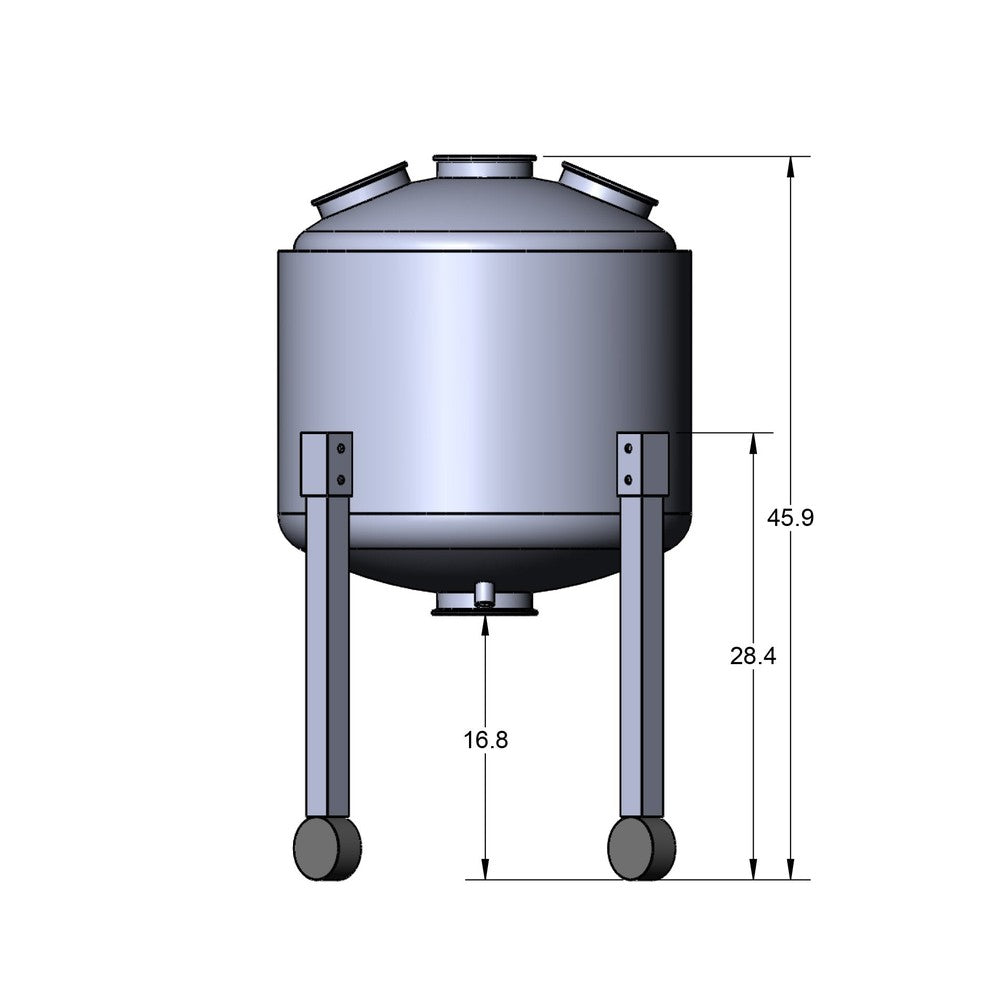

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a (3) 6" Tri-Clamp/ Tri Clover ports on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily including 32" and wider doorways.  (Note: this unit comes bare and does not include any fittings besides the legs with casters.)

 *High Pressure Clamps are required when using pressure greater than 100 PSI

***Note: This item will ship via freight ONLY.
